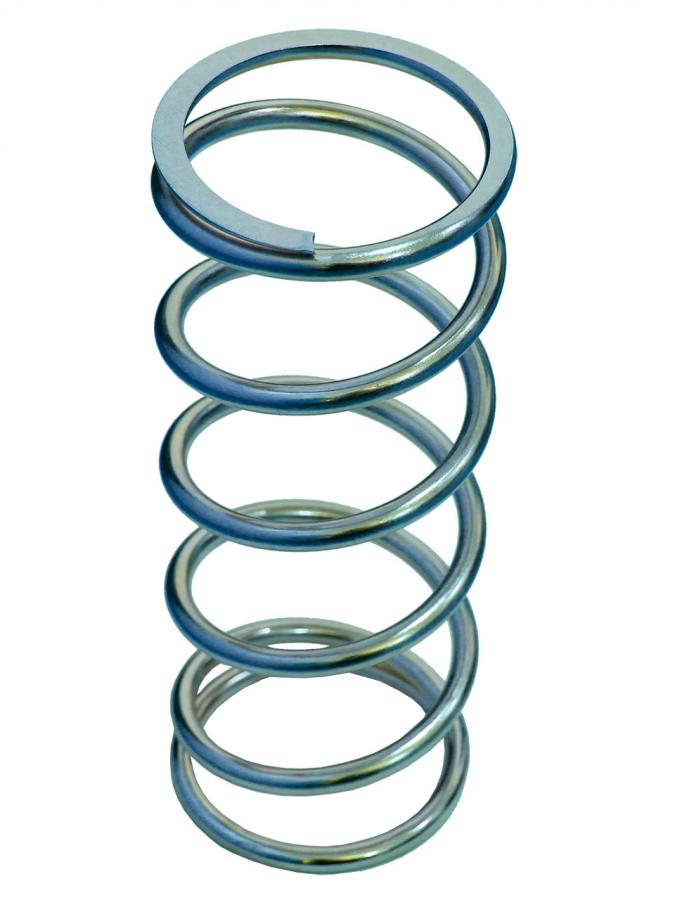

Secondary clutch spring Can-Am “Heavy duty” (tires 28-32″)

Made by VAUHTI VARIKKO

Can-Am variator upgrade springs helps to maintain the optimal CVT transmission performance when changing the tire size of the vehicle from standard.

Our upgrade spring kits fits for all CanAm Outlander / Renegade models from 400 to 1000cc.

Heavy duty springs for models equipped with 28″-32″ wheels.

Further info:
When installing larger diameter tires, it is recommended to change the variator settings also. If the variator settings are not changed, the clutch will try to engage too soon and variator changes the transmission gearing too early for the larger wheels, placing a heavy load on the variator belt, which could end with broken belt in the worst case.

If the variator belt has broken for some reason, it has probably generated high heat in the variator parts, which could also have effect on the
variator (clutch) spring. A loose spring causes the clutch to engage too soon and the transmission gearing changes too early, which usually can cause the new variator belt to break. So, it is recommended that the (clutch) spring in the variator should always be replaced in pairs with a new belt.

The function of the secondary variator is to make the transmission heavier as the speed increases and the spring and helix inside it determine this
event as desired.

If the ring size is changed to a larger than two inches constant, for example, it makes the constant really high on the variator when accelerating, because then it tries to implement too much transmission too early. This can be easily remedied by replacing the variator spring with a stiffer one, thereby slowing the growth of the transmission and creating additional belt pressure which increases belt grip.

• Transfers the engine power to the wheels more effectively.
• Fits for all CanAm Outlander / Renegade models from 400 to 1000cc.
• Lowers the belt working temperature, thus increases the belt life significantly.
• Heavy duty springs for models equipped with 28″-32″ wheels.
• We recommend to use official dealership installation services, they have the correct tools and knowledge for such installation.
• This will not increase vehicle´s top speed.
