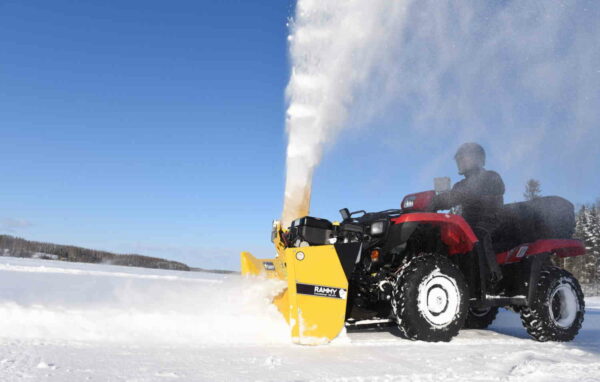

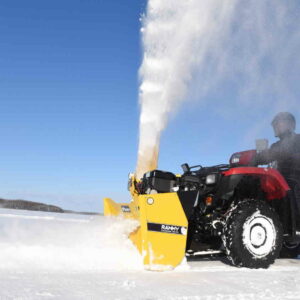

RAMMY Snow blower 120 ATV PRO

Much power in a compact package!

Rammy Snow blower 120 ATVPROis the PROFESSIONAL series 120 cm wide snow blower with a bigger engine. The snow blower is suitable for small yards as well as long road scrapers. The Rammy ATV snowmobile has a compact size, so the agility and off-road capability of your ATV is maintained. It also works in wet snow. The snow blower has its own, larger 420 cm3 engine with electric start.

With its adjustable frame, the snowmobile fits almost all 4×4 and 6×6 ATVs. If your snowmobile has a central mounting bracket on the bottom of your ATV, the Rammy will fit the existing brackets. If you need a mounting kit (not included as standard), we have one, see here CENTER MOUNTING KITS.

The snow blower can also be attached with LOCKS 16-19-20 mm (optional).

Light and compact

The Snow blower 120 ATV PRO is powerful and compact. The snow blower is agile and efficient. The snow blower lifts up on an ATV winch, making it easy to use even in small yards.

Quick attachment with pins

The Rammy attaches to the base of the ATV with two blind pins on the center mounting bracket. Same attachment as for the snowboard (center mounting kit).

Electronic remote control

The snow blower has an electric remote control with selections for the angle and rotation of the ejection tube and a power switch.

Twin threaded snow auger

The snow blower has a twin screw snow auger that makes the snow blower short. The snow screw has a rubber plate seal to minimize damage in case of impact with rocks or hard objects.

Works in wet snow

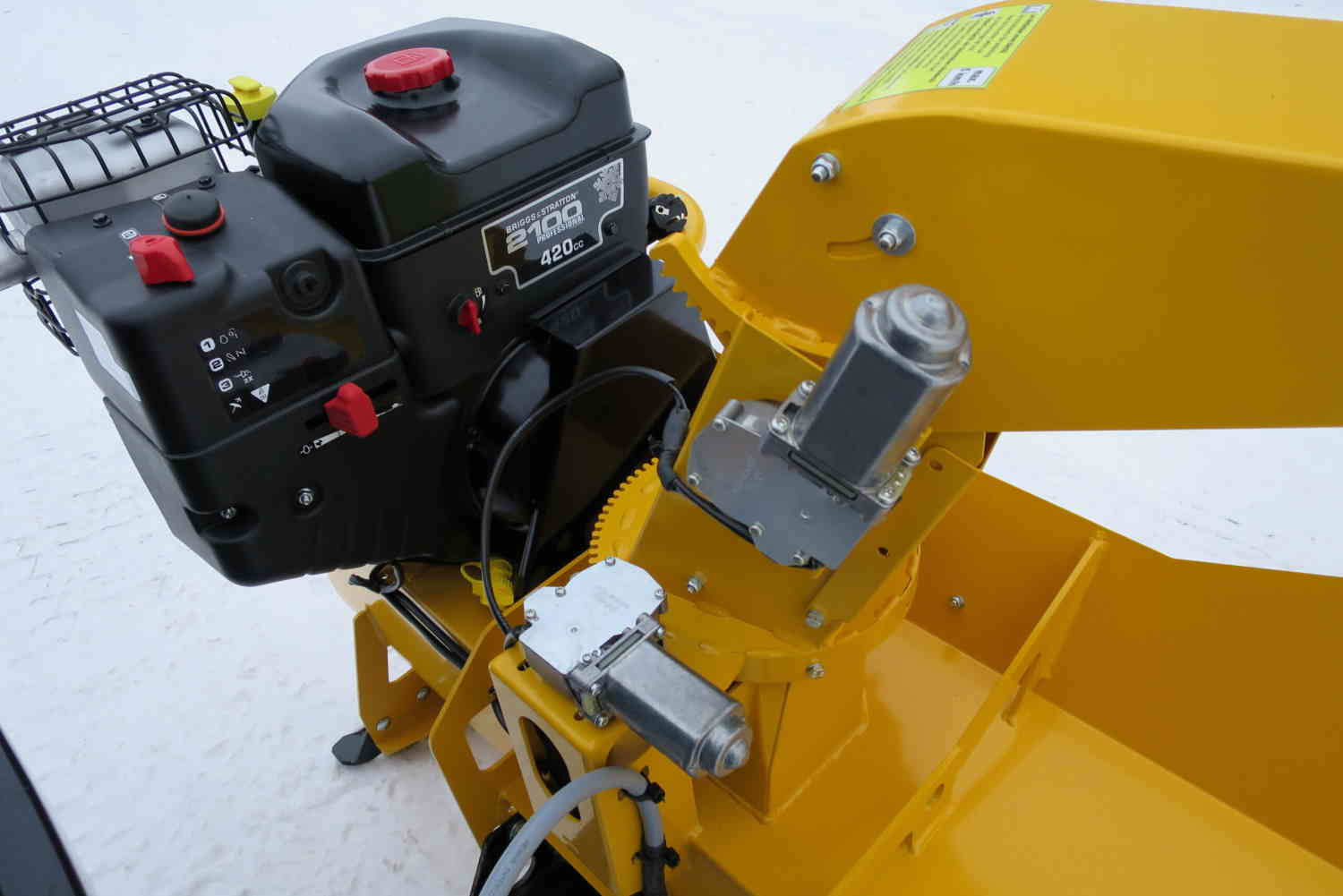

Unique MDS technology allows good performance even in wet snow. The snow blower is powered by a Briggs&Stratton 420 cm3 winter engine.

Complete package

The Rammy snowblower is a ready to use package. Delivery includes: snowblower, remote control and adjustable auxiliary frame. Each item has been test driven and inspected.

Technical specifications

Lightness	1,18 m
Height	0,5 m
Weight	Lumbar lift 110 kg, auxiliary frame 25 kg
Height of inlet	550 mm
Lumen throw distance	1-10 m. Adjustable in speed and throw angle. The throwing distance is also influenced by the condition of the snow.
Motor	Brigss&Stratton Snow Series 2100 4-stroke winter engine 420 cc. torque 28.5 Nm. Brigss&Stratton does not specify horsepower. Petrol recommendation 98.
Starting	Advanced manual starting. Electric start (230 V)
Consumption	1-2 ltr/h
Mounting on a ATV	With an intermediate frame for the ATV mid-mount kit with two pins Ø10 mm, adjustable basket width 240-500 mm (outside dimension) and adjustable length 750-1250 mm. Optional Arctic Cat, Can-Am, Kimpex Click&Go and Polaris 16-19 mm brand-specific lock brackets.
	With ATV winch or hydraulic cylinder
Traction control	Electric, 3-speed – power switch – ejector tube rotation – Adjustment of the angle of the ejector tube head Switch and throttle in snowmobile.
Standard equipment	– additional frame – adjustable skis – remote control and mounts on the pole – adjustable and interchangeable blade – de-icing tool
Capacity	1100 m3/h. Equivalent to 20 cm of pack ice at full working width at 5 km/h.
Guarantee	2 years
