3 831,87 €
front-mount and agile clearing saw
Ask about a product

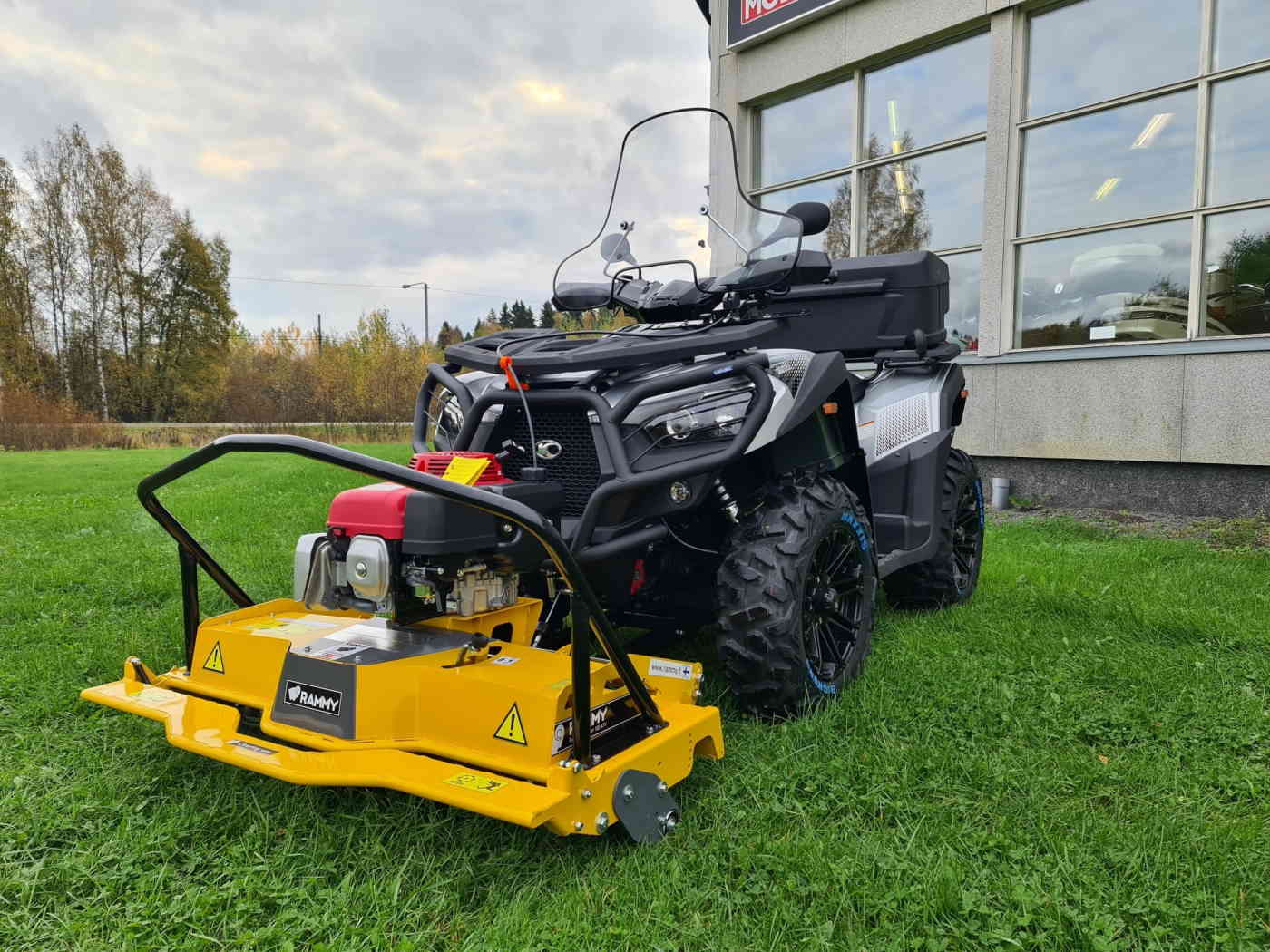

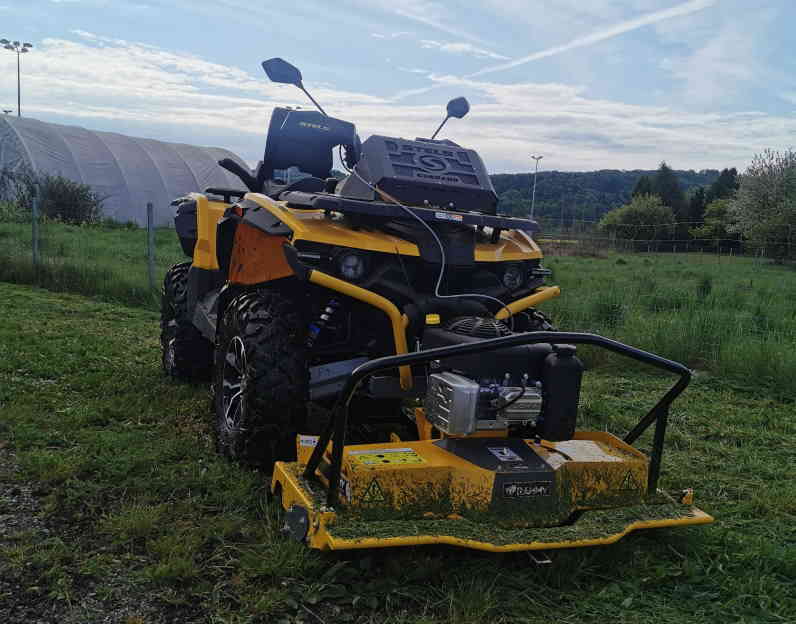

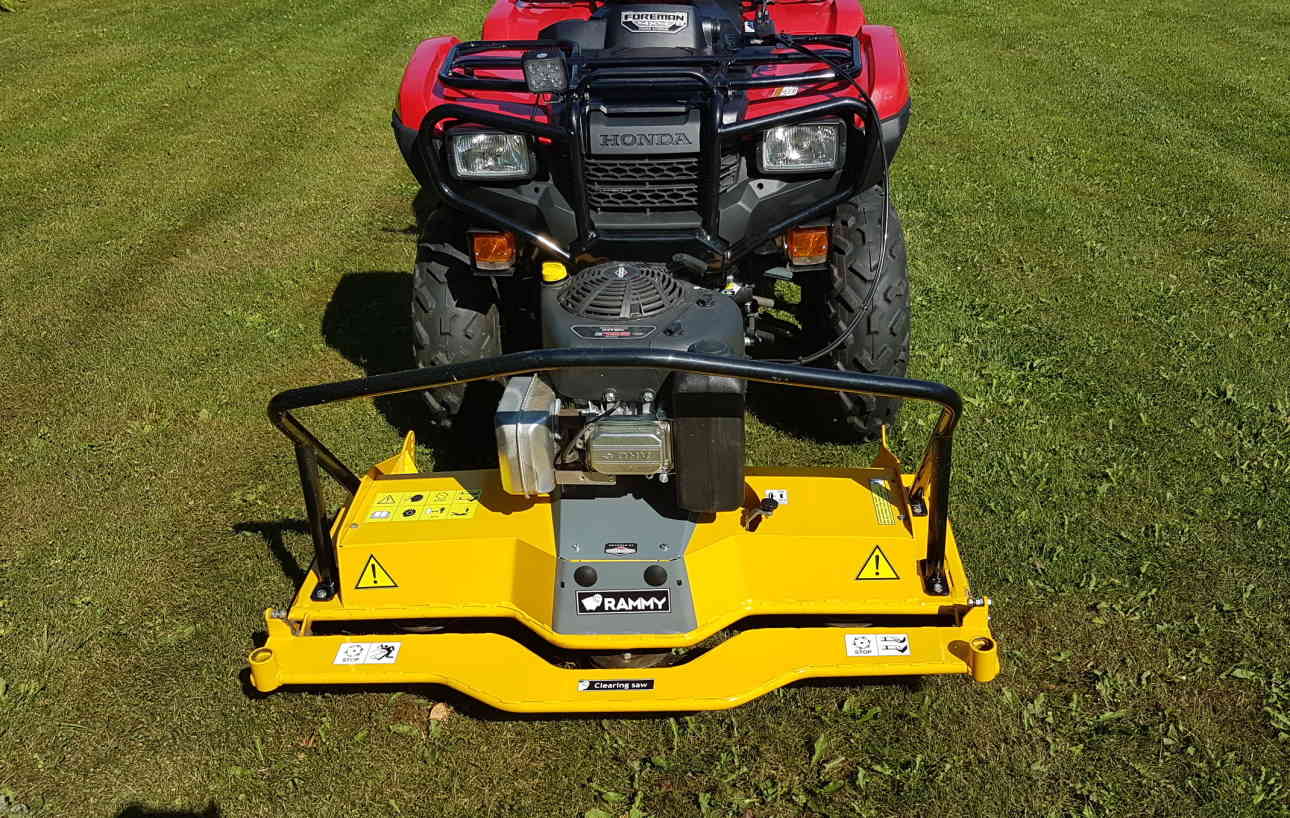

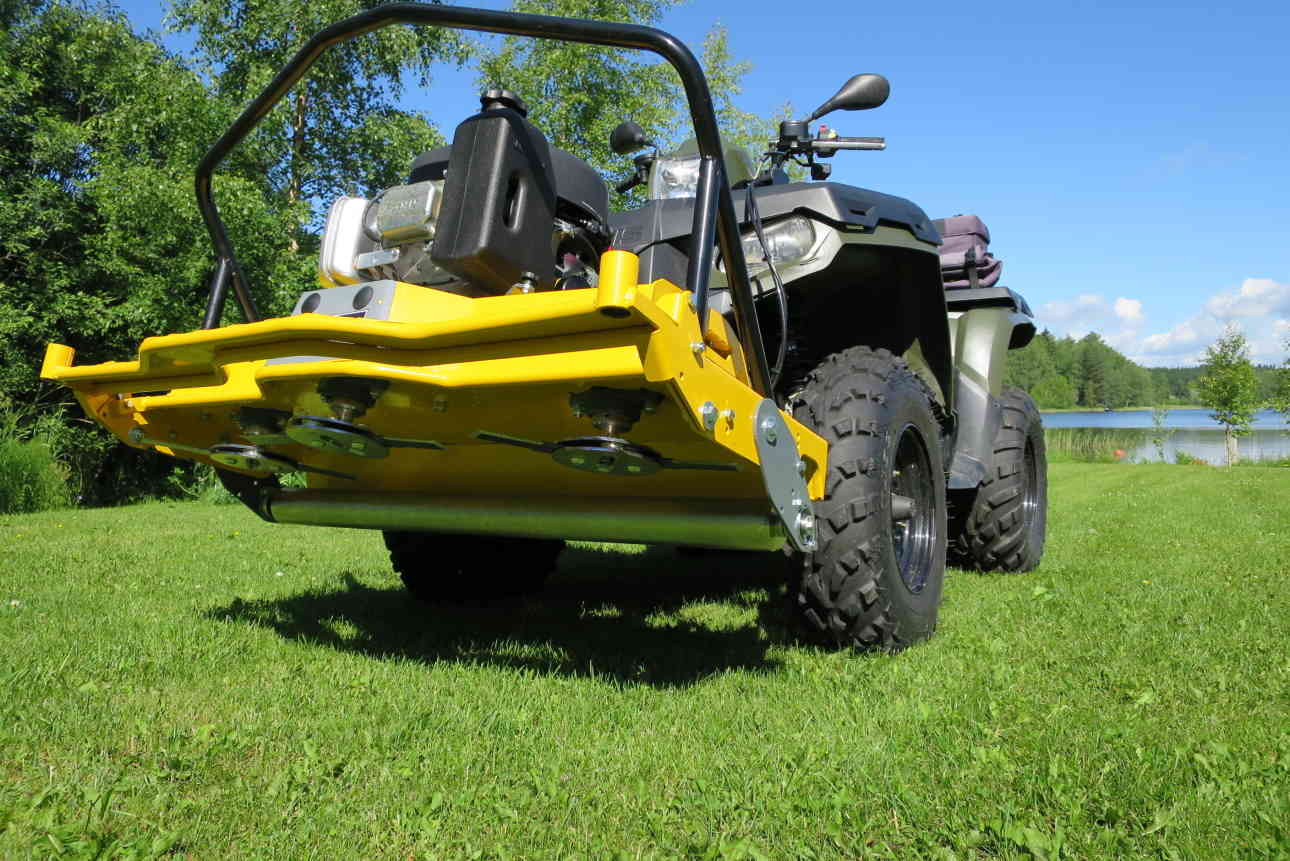

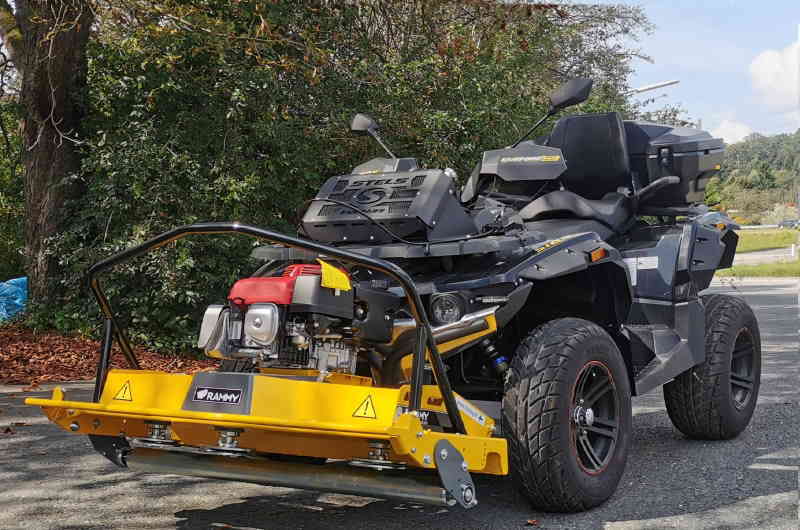

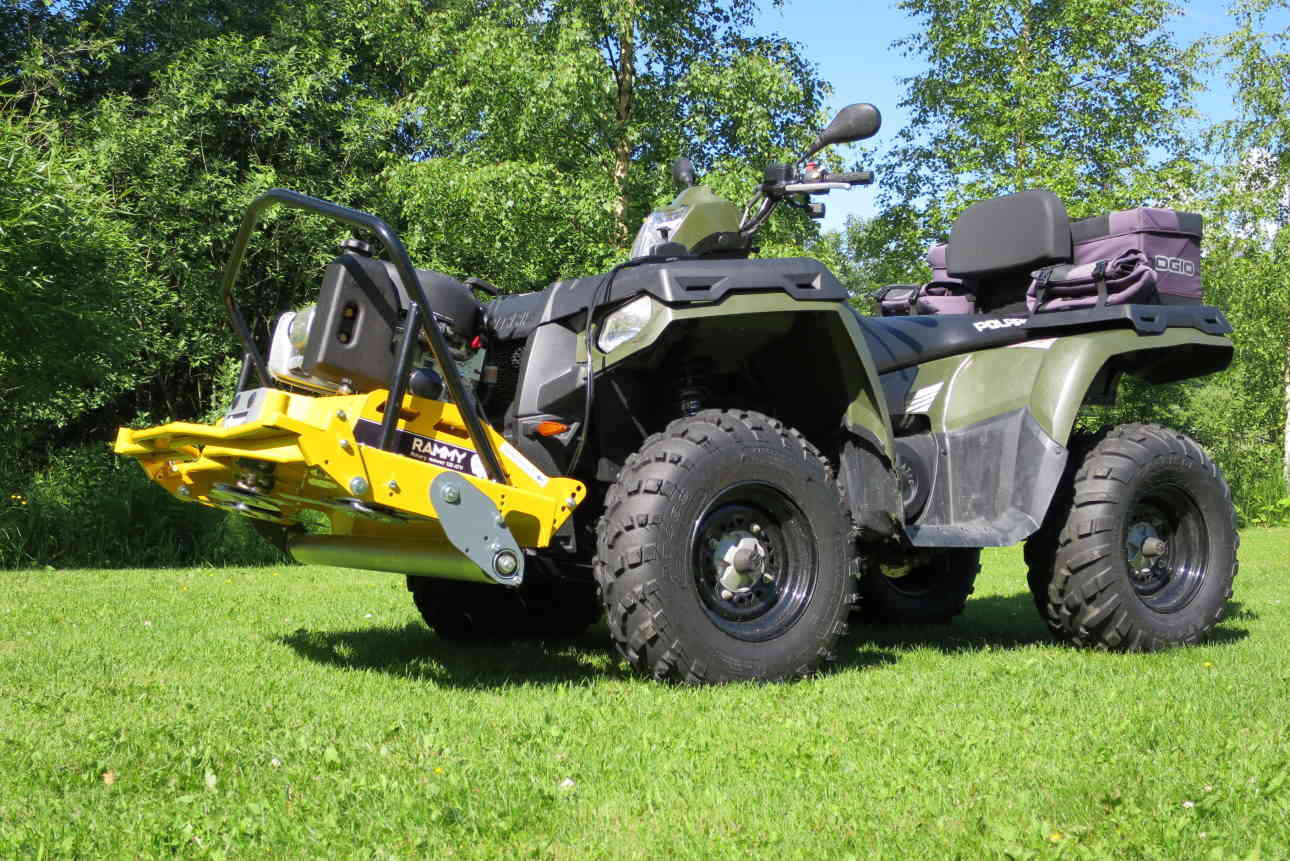

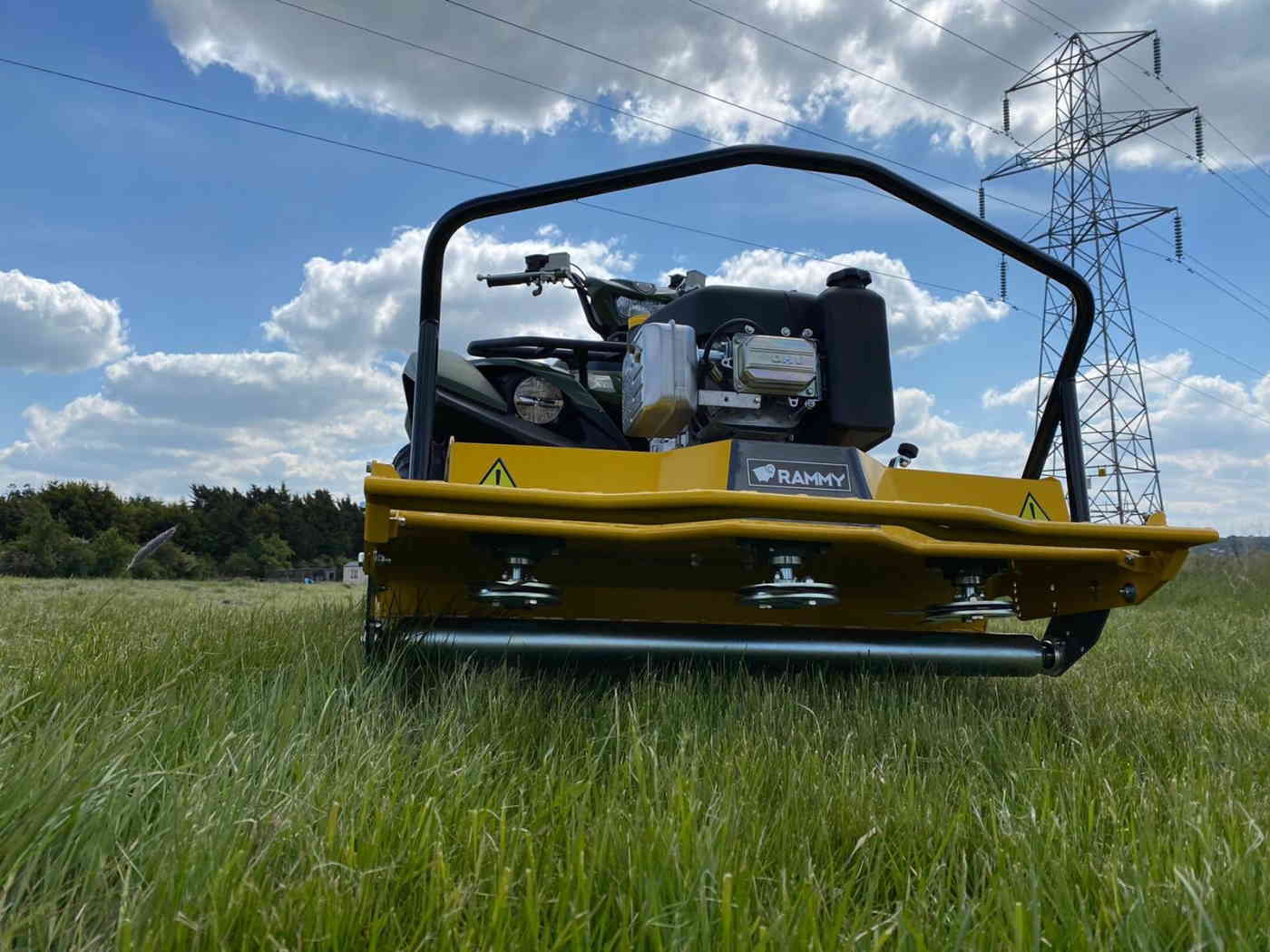

Rammy broom cutter 120 ATV PRO is an agile and powerful rotary broom machine for ATVs. The rotary broom machine is a powerful cutter for cutting all types of vegetation. It cuts grass, hay, willow, stubble and even 10 cm trees! The rotary broom machine can be driven against the ground. The blades are protected by a protective land roller underneath and the blades are protected above the land roller.

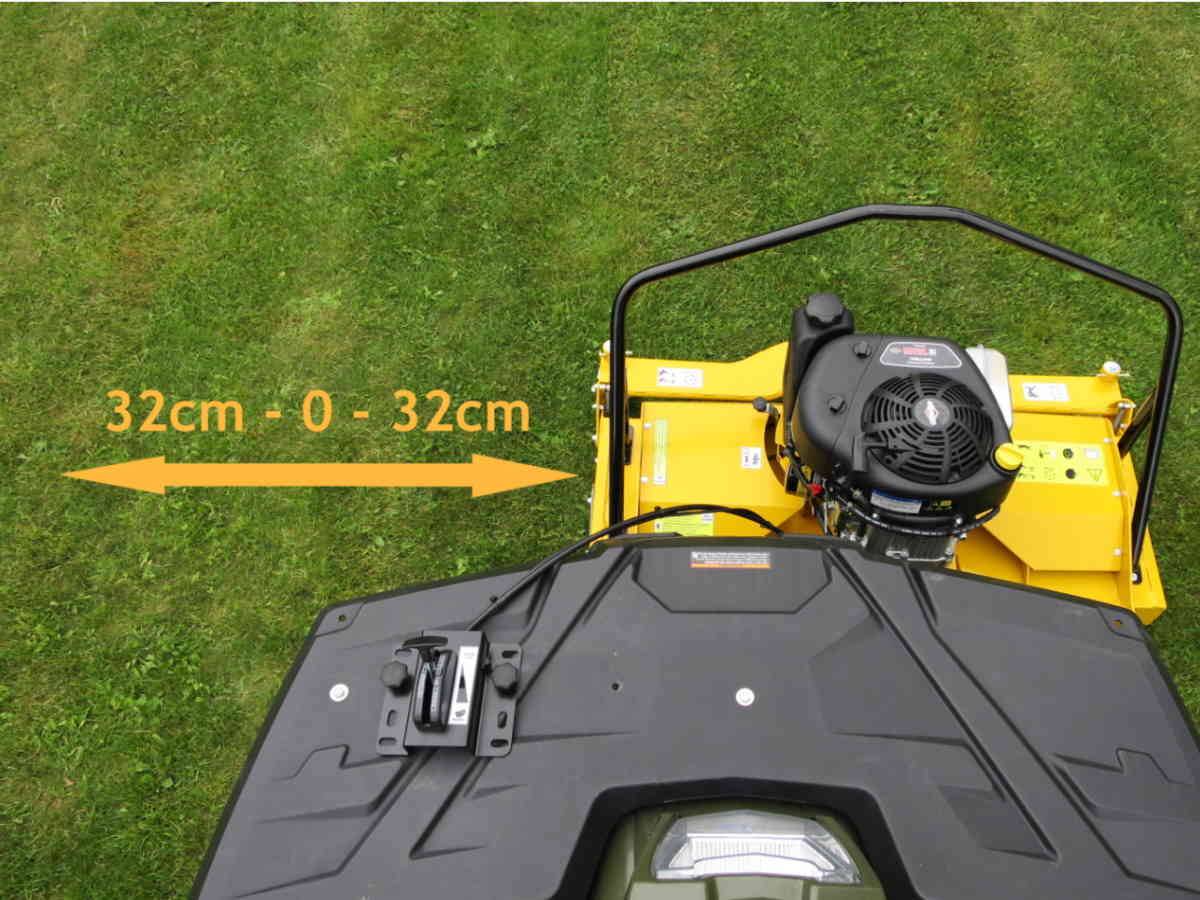

The clearing saw can be moved 32 cm to the left or right side when equipped with the SIDE-STOP (standard).
The adjustable frame makes the clearing saw suitable for almost all 4×4 and 6×6 ATVs. If the mid-mount bracket for the plow bladeis on the bottom of your ATV, the Rammy will fit the existing brackets. If you need a mounting kit (not included as standard), we have one, see here CENTER MOUNTING KITS.

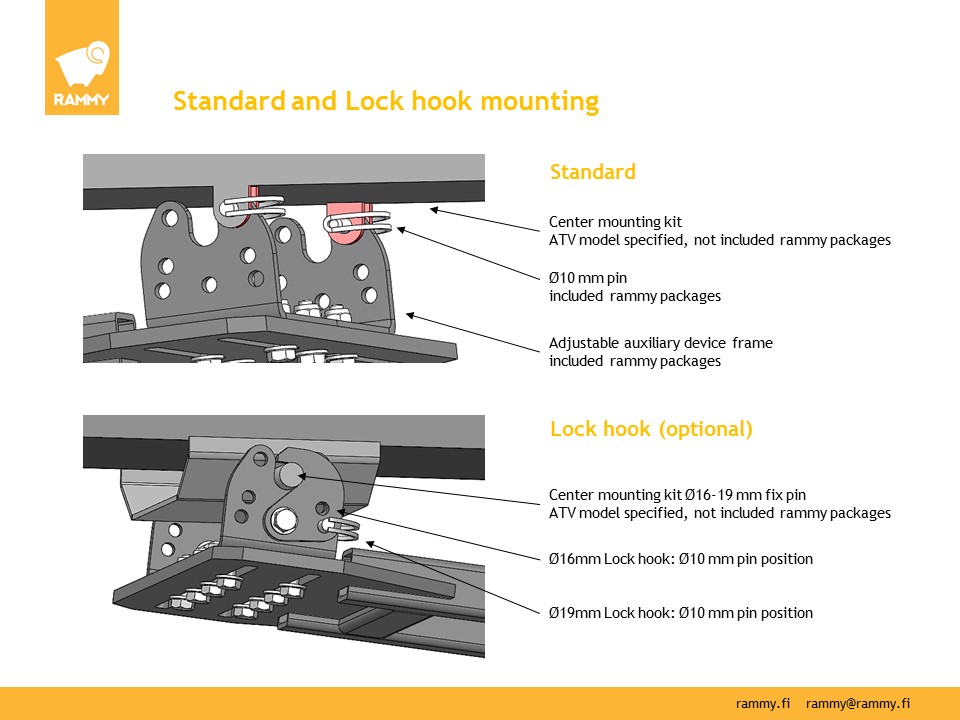

Rammy can also be attached with LOCK HOLES 16-19-20 mm (optional).

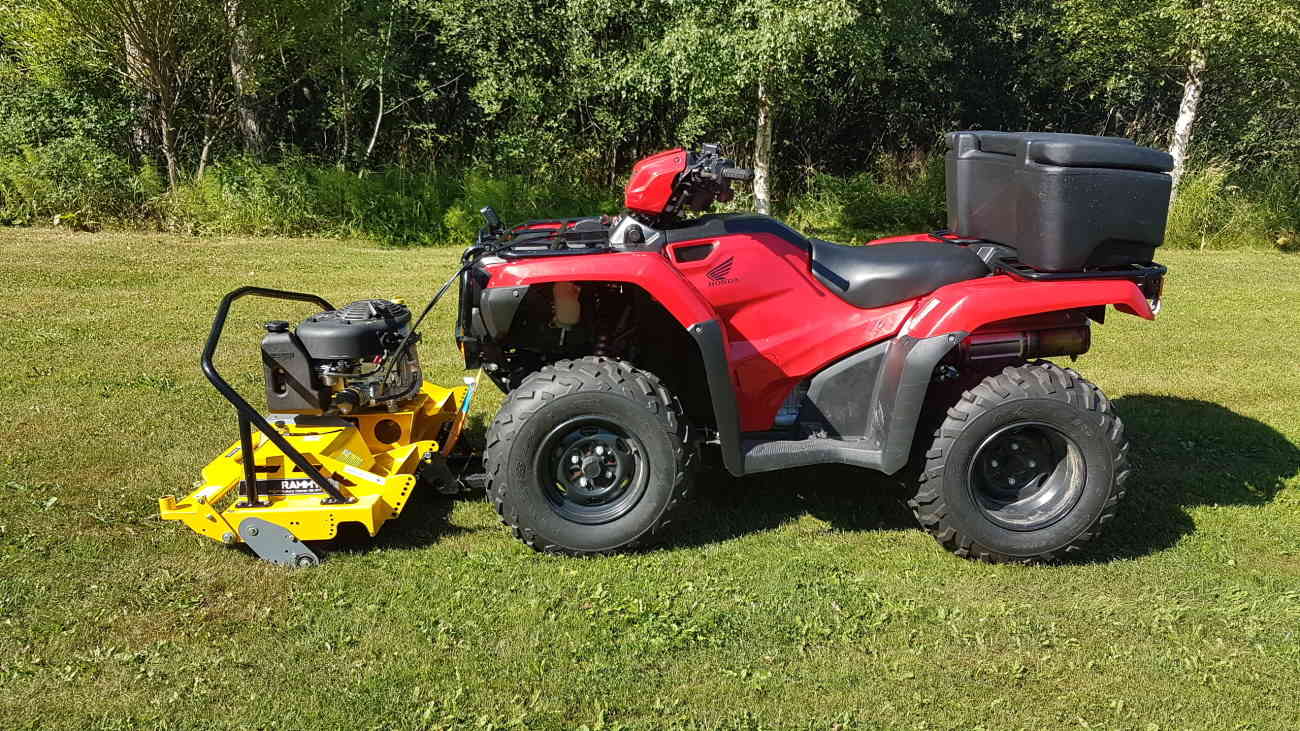

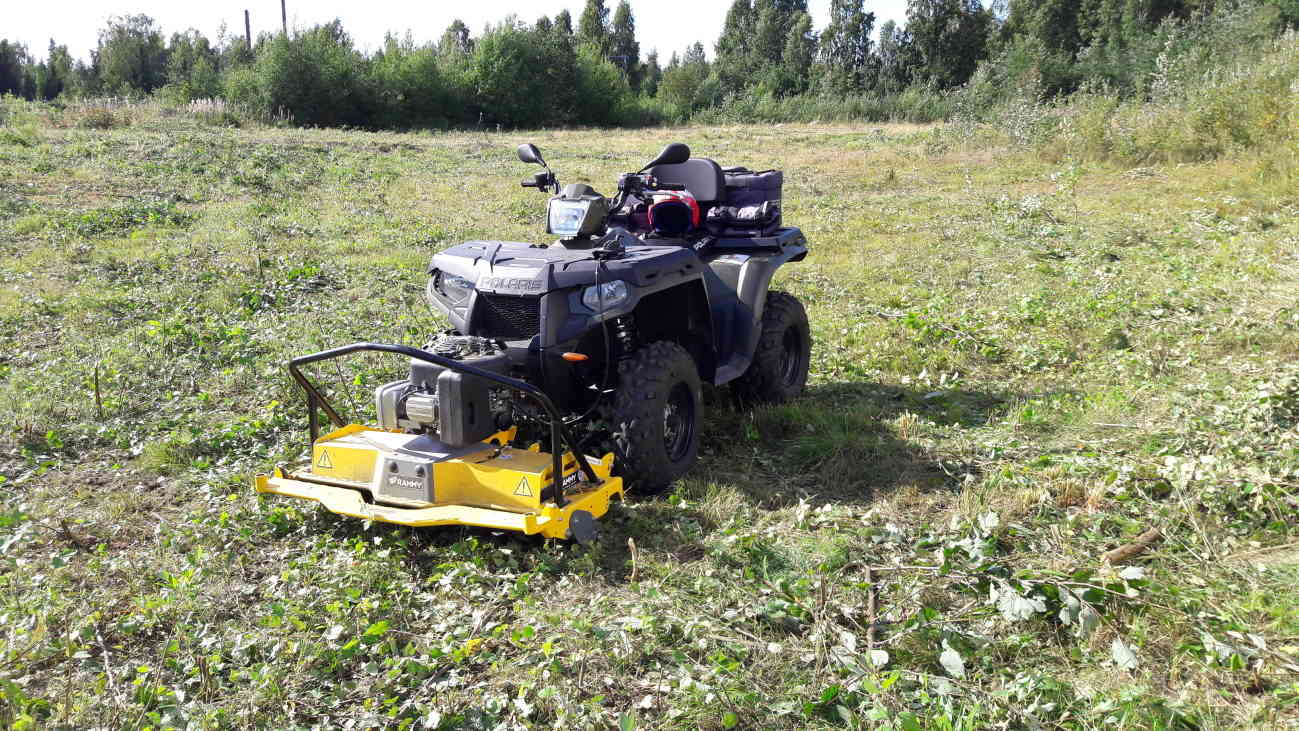

Rammy is in front of the ATV, so visibility and handling is excellent. Cutting height adjustment is 2-10 cm with a rear land roller. Even higher on the winch, up to 40 cm.

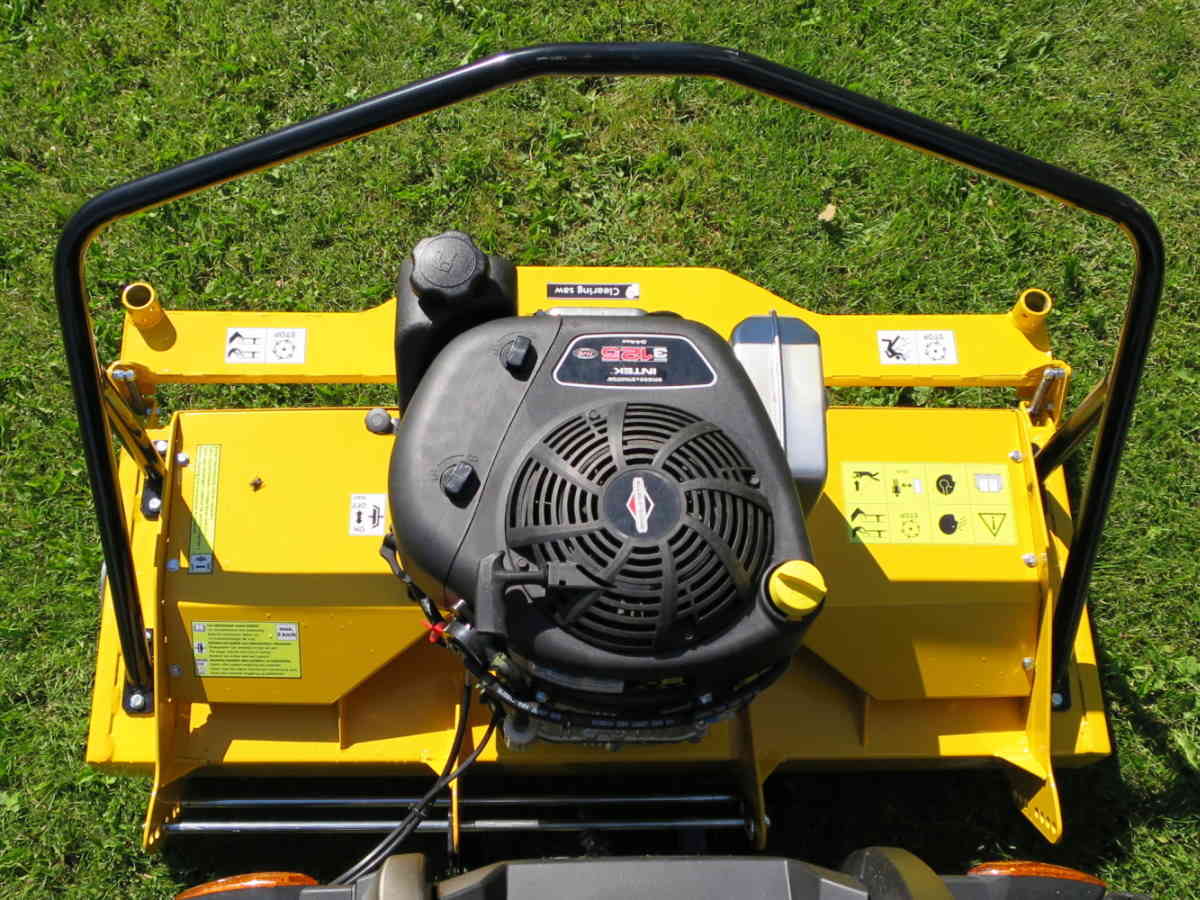

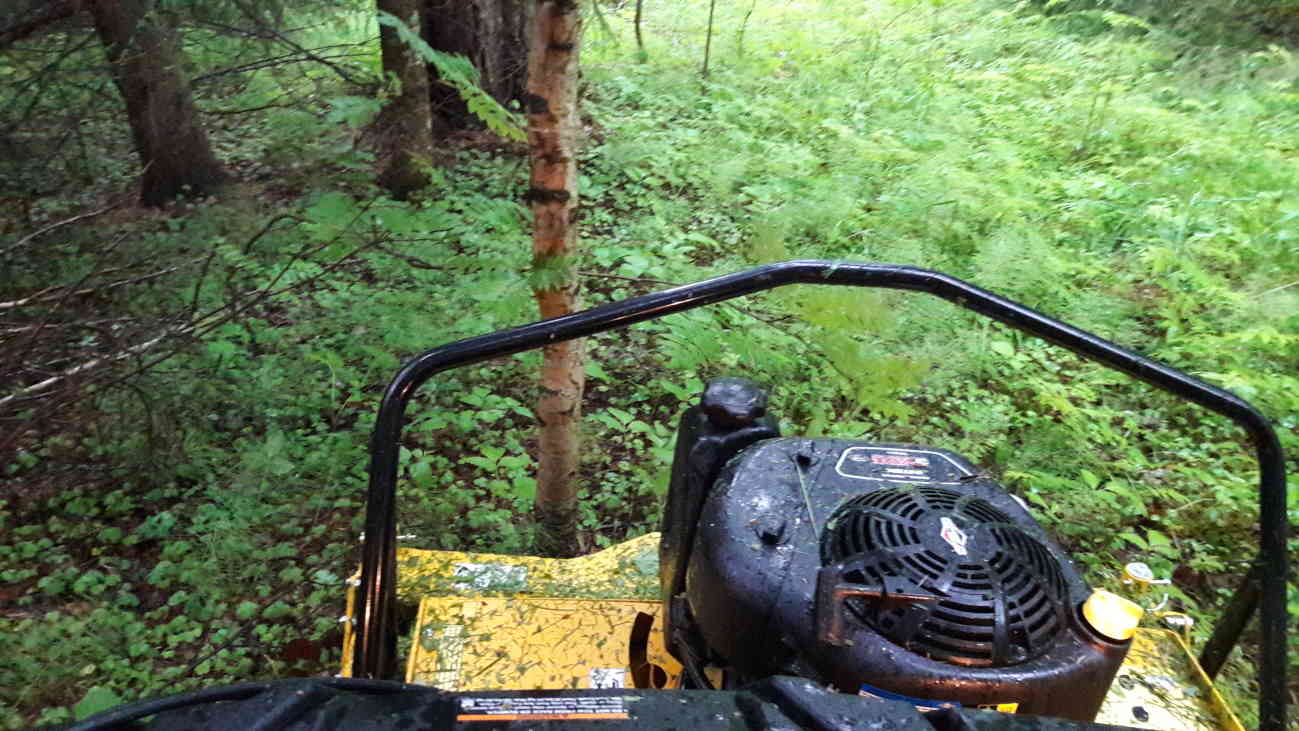

B&S 344 cm3 engine and maintenance-free transmission make the flail mower a powerful and reliable workhorse.
When equipped with the side shift kit (standard), the flail mower can be moved 32 cm to the left and right side.

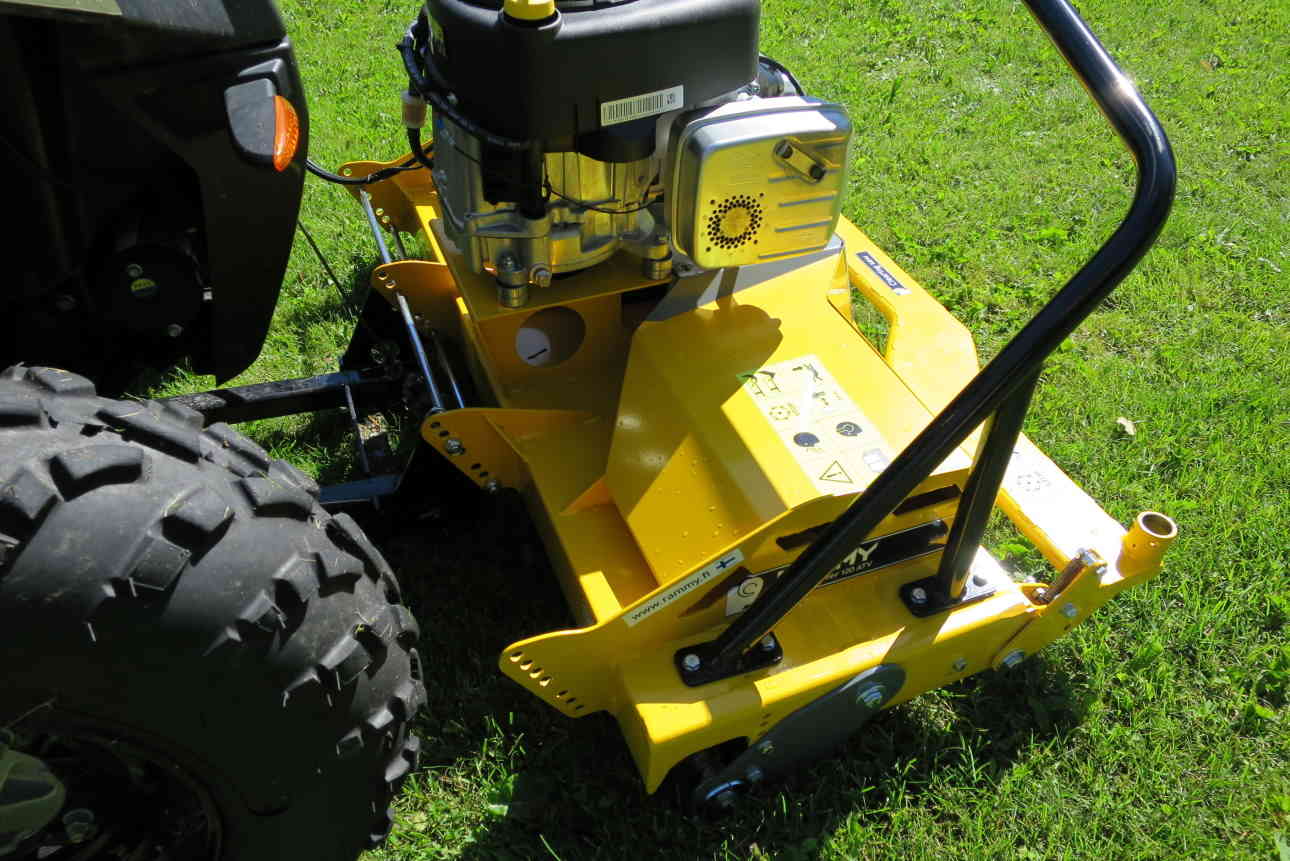

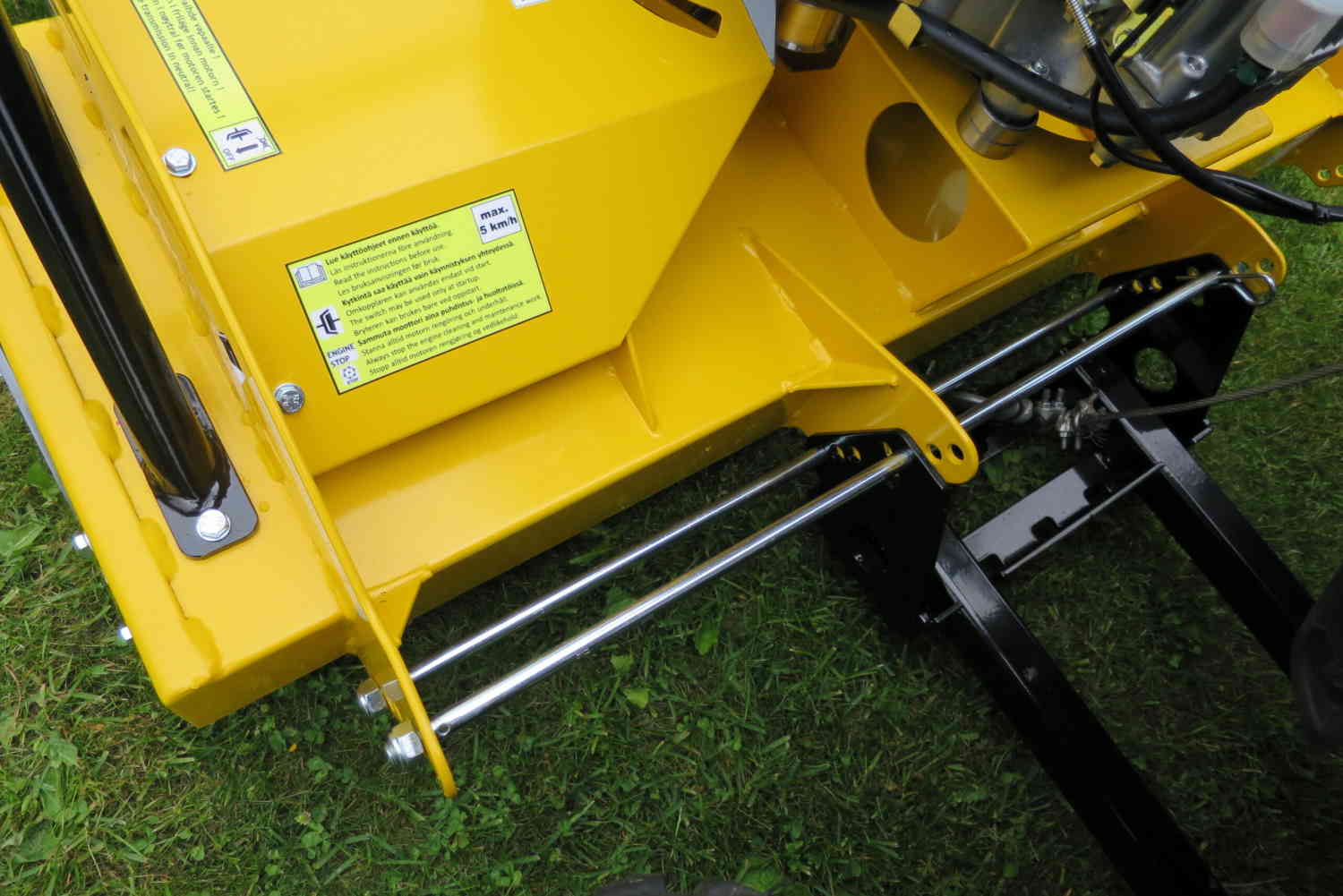

The Rammy is attached to the base of the ATV with two blind pins to the mid-mount bracket. Same attachment as for the snowboard (center mounting kit).

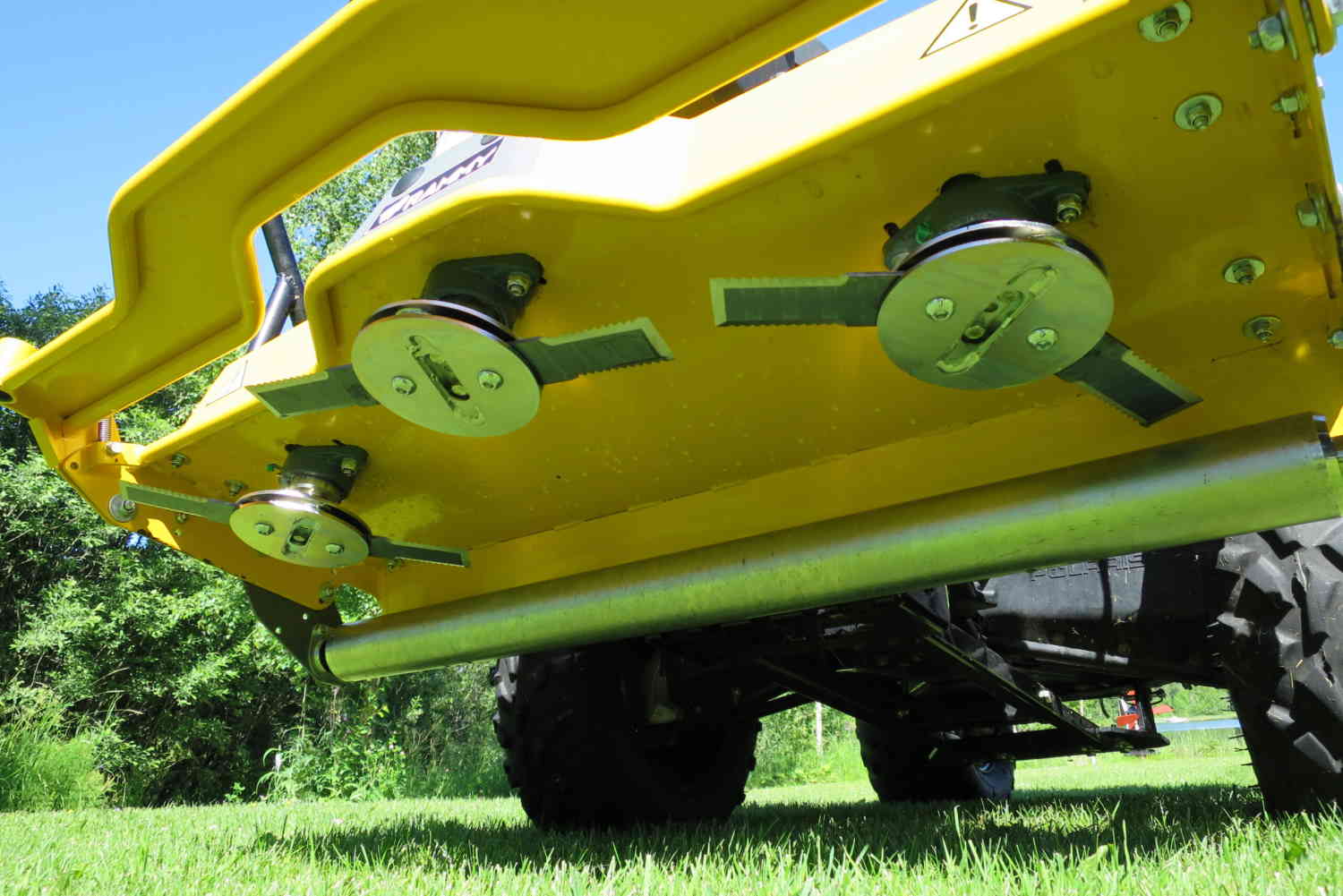

6 horizontal rotating blades 4000 r/min. Hinged to fold when an obstacle is encountered, reducing wear and damage to the blades. It cuts grass, hay, willow, stubble and even 10 cm trees!
The flail mower comes in a ready to use package. Delivery includes: flail mower, adjustable attachment frame and remote control. Each item has been test driven and inspected.
| Level | 1,2 m. Cutting width 1,15 m. |
| Height and weight | 0,7 m. Clearing saw 90 kg, auxiliary frame 25 kg. Total weight 115 kg. |
| Cutting principle | 6 horizontal rotating blades 4000 r/min. Hinged to fold when an obstacle is encountered, reducing wear and damage to the blades. |
| Cutting height | Adjustable by land roller from 2 to 10 cm. With winch 7-30 cm (depending on the front suspension and ground clearance of the ATV). |
| Motor | Briggs&Stratton Series 3 Intek 344 cm3. 25 Nm torque. 2,7 L petrol tank. |
| Starting | Advanced manual start |
| Consumption | 1,5…2 L/h |

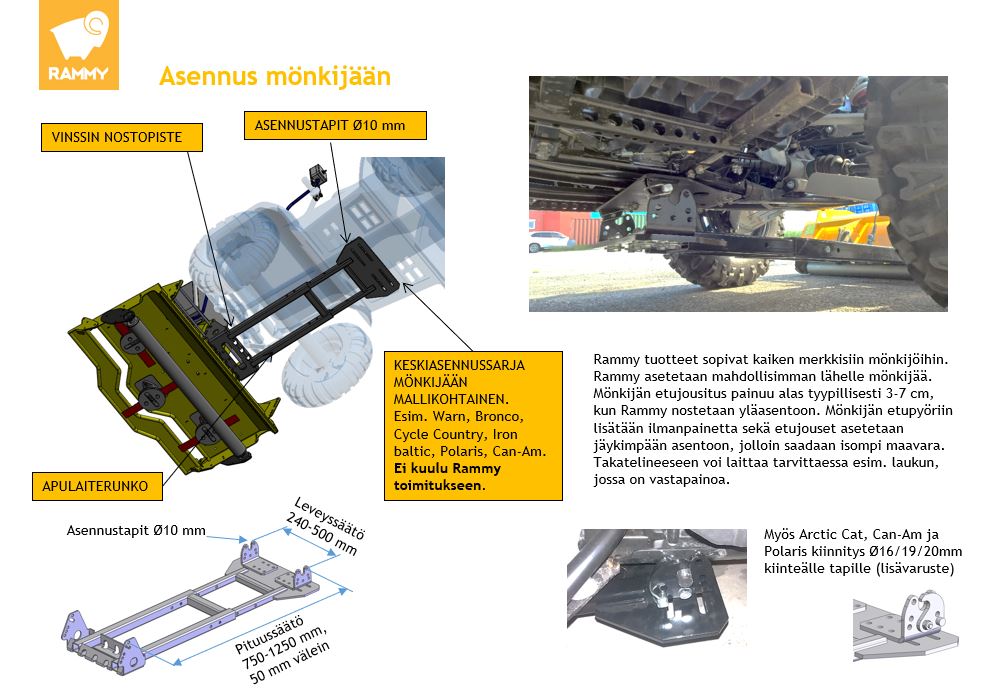

| Mounting on ATV | With an external frame to the ATV mid-mount kit with two pins Ø10 mm, adjustable basket width 240-500 mm (external dimension) and adjustable length 750-1250 mm. Optional Arctic Cat, Can-Am, Kimpex Click&Go and Polaris 16-19 mm brand-specific lock brackets. |
| Buy/lower | With ATV winch or hydraulic cylinder. |
| Shift contland roller | Circuit breaker |
| Standard equipment | – Adjustable auxiliary frame – Adjustable land roller – Remote control – Sharp hardened blades – Side shift kit – Front guard frame – Revolving protective bumper |
| Capacity | – 0-10 cm trees – Grass, meadow, willow, bush – Typical driving speed approx. 5 km/h on thin vegetation |
| Guarantee | 2 years |
| Accessories | Lock hook Ø16/19 mm for Arctic Cat, Can-Am, Polaris and Kimpex Click&Go |
| Home Delivery | 60,00 € |
|---|
