Hydraulic timber trailer T1750E 4WD, Kranman

*** OFFER PRICE IS FOR THE TEMPORARY TART ***

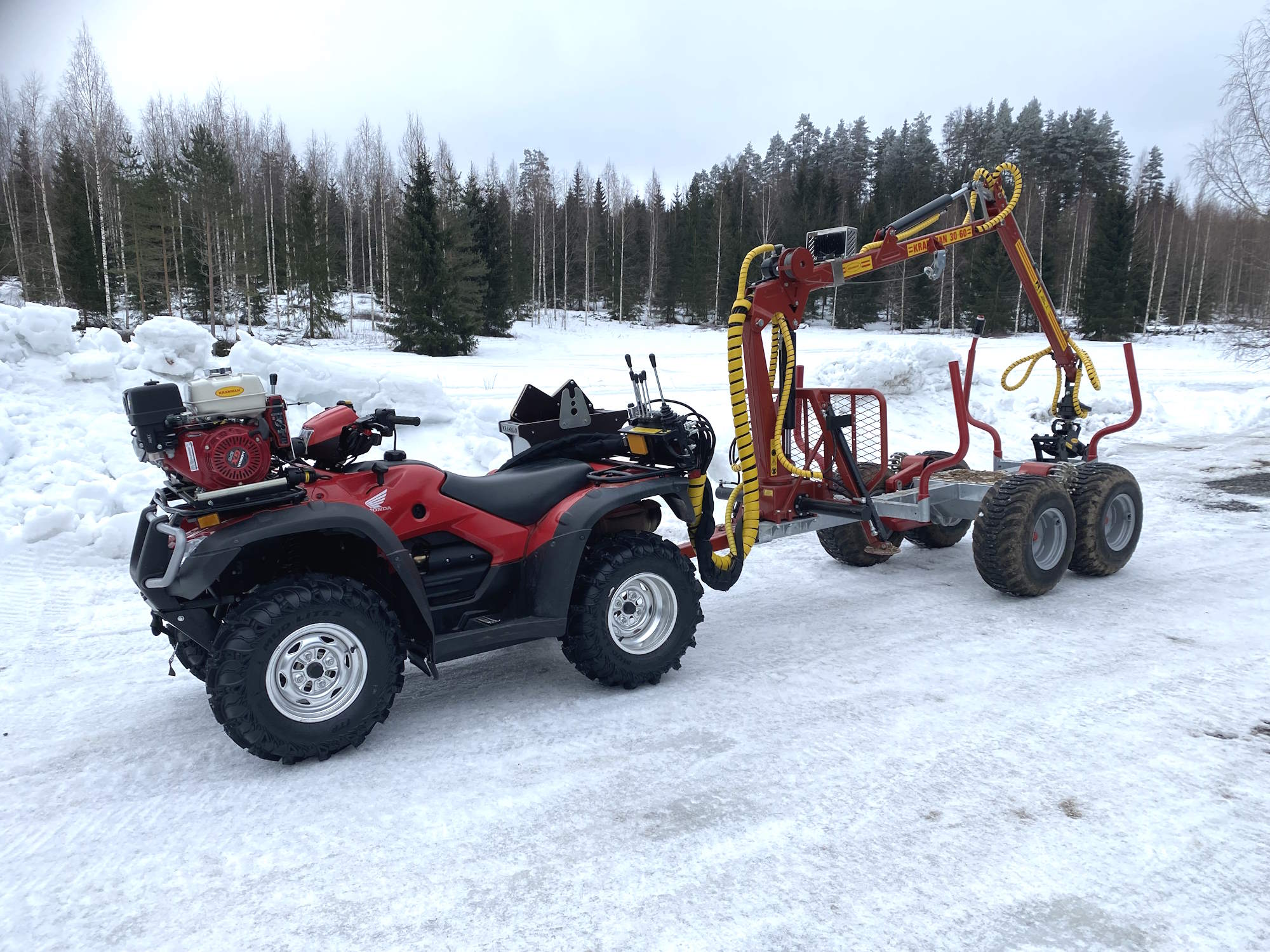

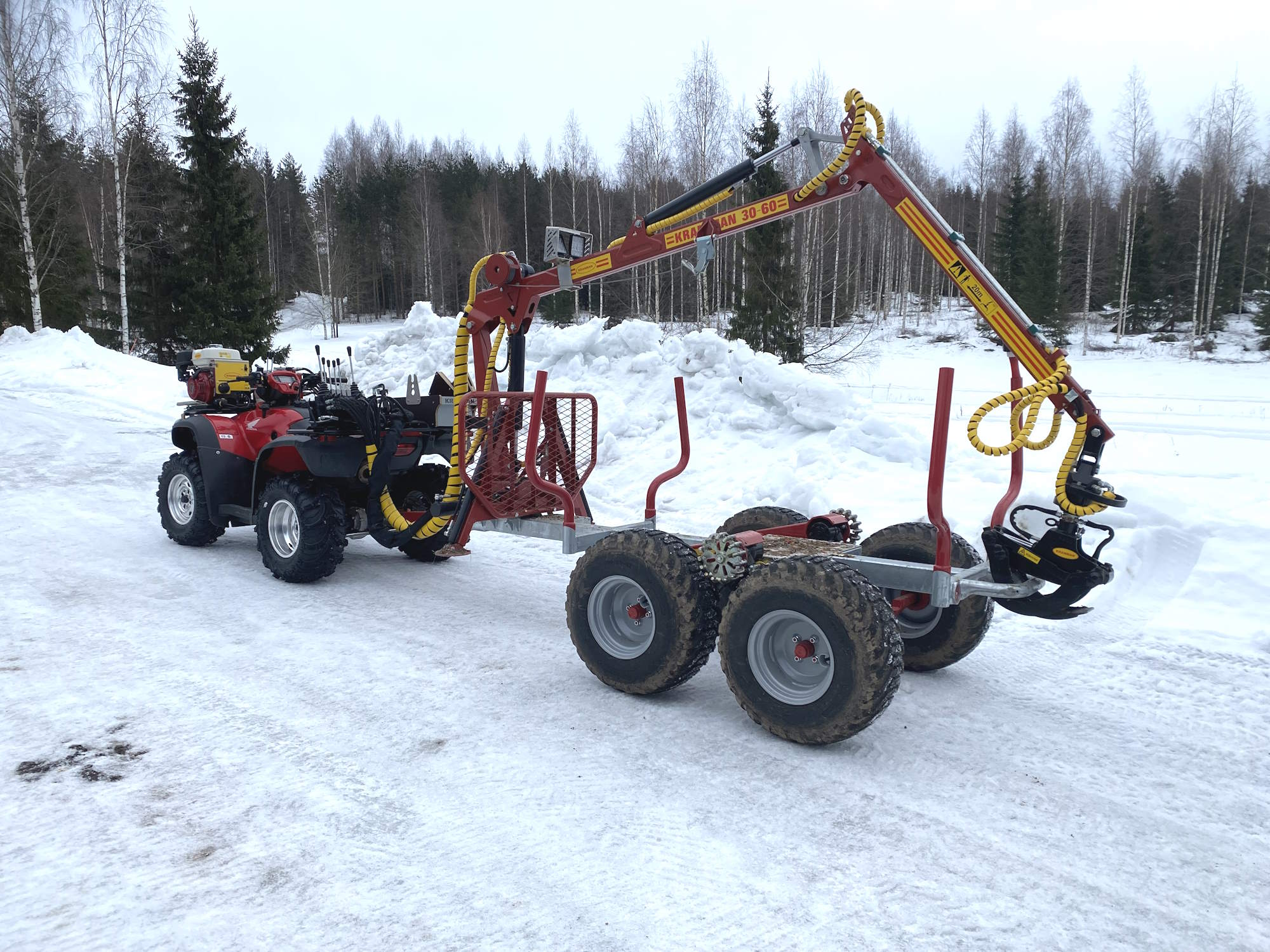

The Kranman T1750E 4WD is a forestry trailer with hydraulic loader that “fits all and does everything”. It is the most popular and best-selling Kranman forestry trailer in Finland.

With its large and strong 300/65-12″ tyres and Robson drive land rollers tailored to fit the tyre pattern perfectly, it has excellent traction. The traction (on/off) is controlled by the ATV brake. When the ATV brake is applied, the traction of the trailer stops. In addition, the trailer also brakes at the same time as the ATV brake is applied.

The electrically controlled frame steering makes it easy to manoeuvre even in dense woodland. The body steering is controlled with the thumb directly from the handlebars.

Difficult, hilly or dense woods are no obstacle for the T1750E.

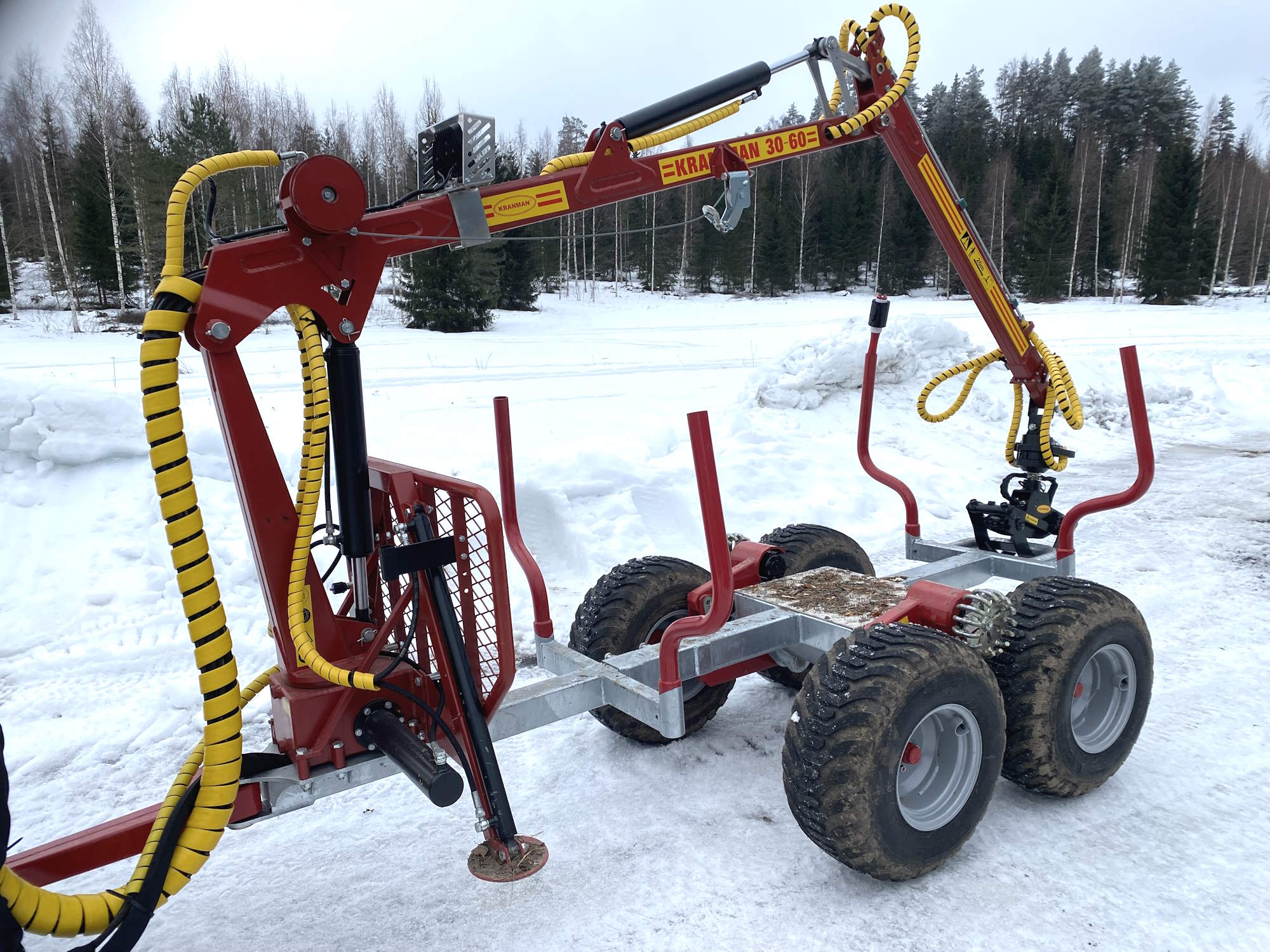

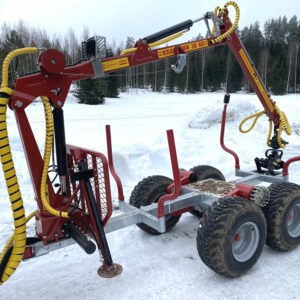

The T1750E is equipped with a 30-60 hydraulic crane, hydraulic outriggers and a hydraulic winch. Everything you need to efficiently harvest windrows or thinnings.

A reliable Honda GX270 engine handles the trailer hydraulics. The loader extends up to 4.4 metres with an extension boom. It can lift 240 kg from a distance of three metres. The T1750E has a very strong frame and a payload capacity of up to 1750 kg.

Technical specifications:

T1750E trailer:

• Width 145 cm

.

• Length from stern to rear bench 226-286 cm
• Minimum length between front and rear bench 168 cm
• Loading area 0,9 m2
• Weight 395 kg
• Minimum length 382 cm
• Poles 4 rotating
• Body steering
• Tyres 300/65-12″ 8PLY
• Body beam 100×100
• Spacing of the support leg 40 cm
• Clearance of the trailer body 40 cm
• Wagon ground clearance 30 cm
• Maximum load 1750 kg

Loader 30-60:

• Weight 302 kg (incl. loader, support legs, grapple, rotator)
• Overhang 4.4 m (including extension boom 90 cm)
• Lifting capacity 500 kg / 1,2 m
• Lifting capacity 240 kg / 3,0 m
• Lifting capacity 185 kg / 3,5 m
• Grab area 0,08 m2
• Hydraulic winch Kranman HV150, 20 m / 5 mm wire rope, with radio control

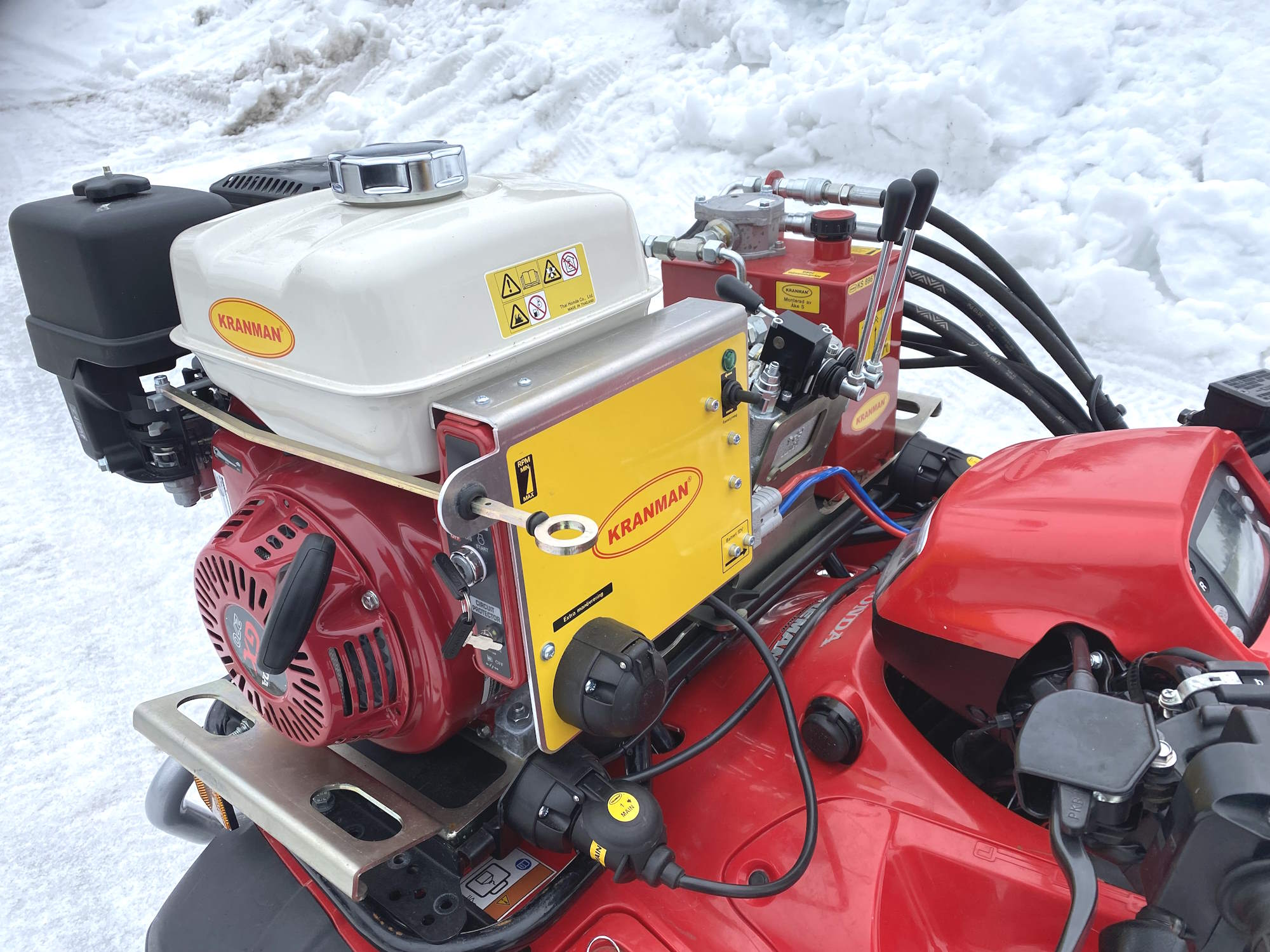

Machine KS-896:

• Motor Honda GX270, with cord and electric start

.

• Valve kit 2+4 lever
• Hydraulic pump 12 l/min (3000 rpm)
• Oil pressure 160 bar
• Weight 46 kg
