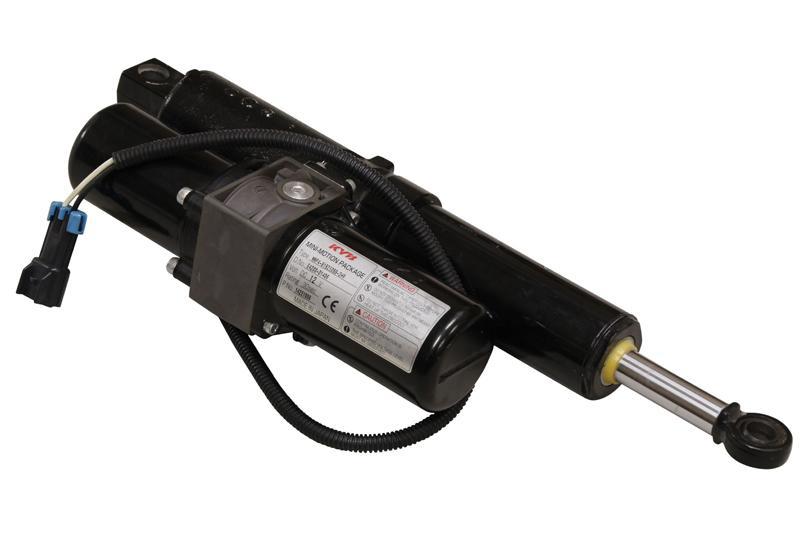

Electro-hydraulic cylinder KYB, Iron Baltic

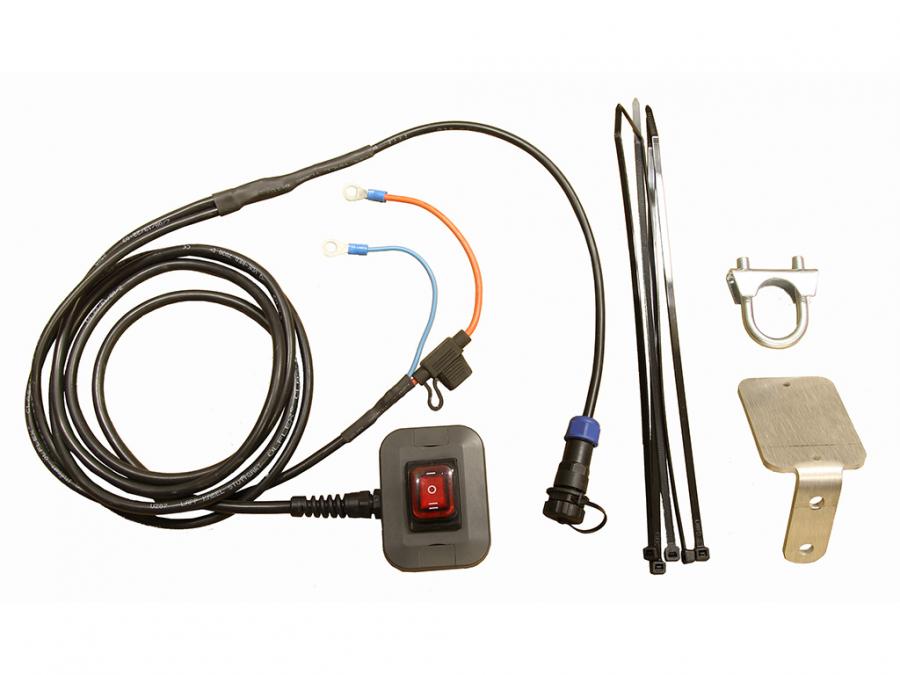

The electro-hydraulic working cylinder does not need a separate hydraulic system, but everything is integrated around the cylinder. All you have to do is connect the electrical system. The electrical kit is sold separately.

The weakness of the electric cylinder, compared to e.g. Latvo hydraulics, is its slowness. But in certain applications (such as plow turn adjustment), speed is not so important.

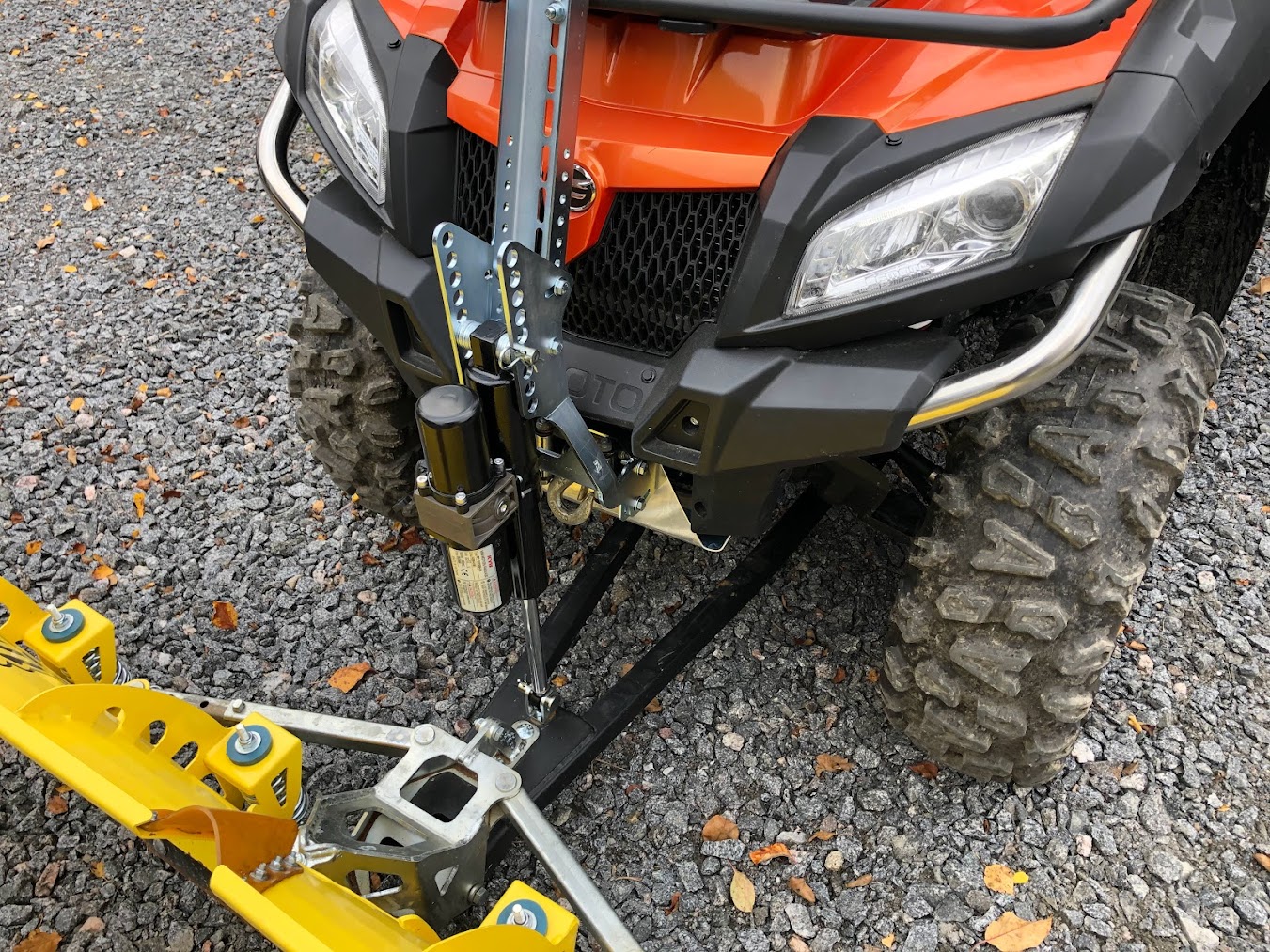

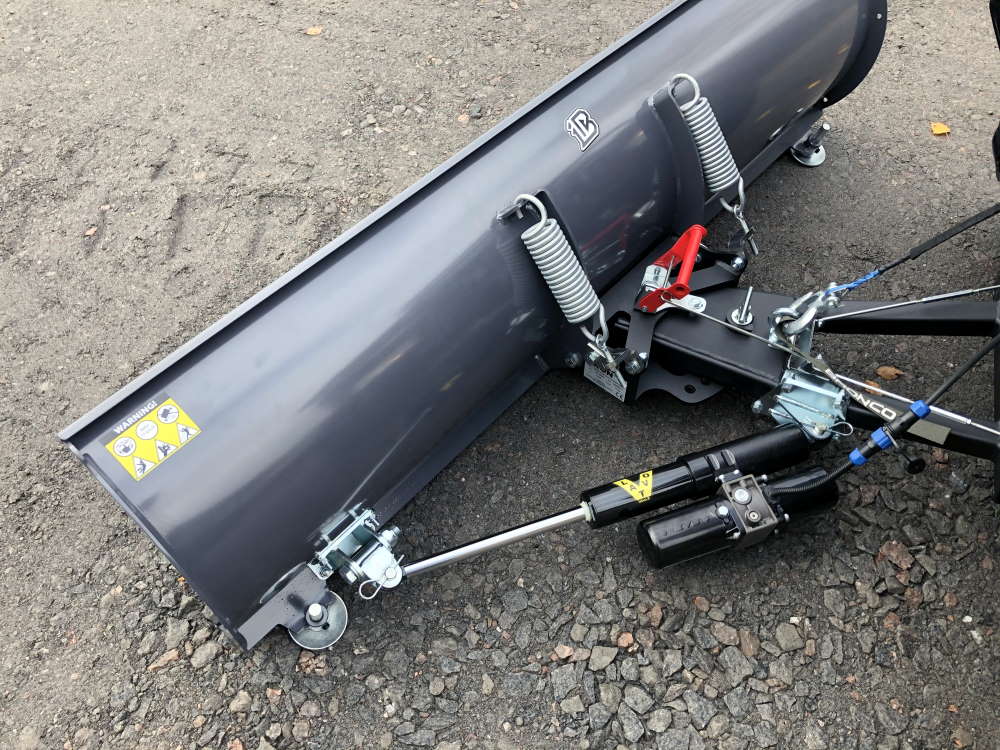

For plow lift applications, Latvo does not recommend electro-hydraulic cylinders, due to their slowness. The cylinder is dimensionally suitable for turning and lifting Iron Baltic straight and tapered plows (provided that Iron Baltic’s own plow turn and lift brackets are used) and for turning 180 cm v-plow wings, but not for 150 cm v-plow wings!

KYB cylinder is a high quality genuine Japanese cylinder.

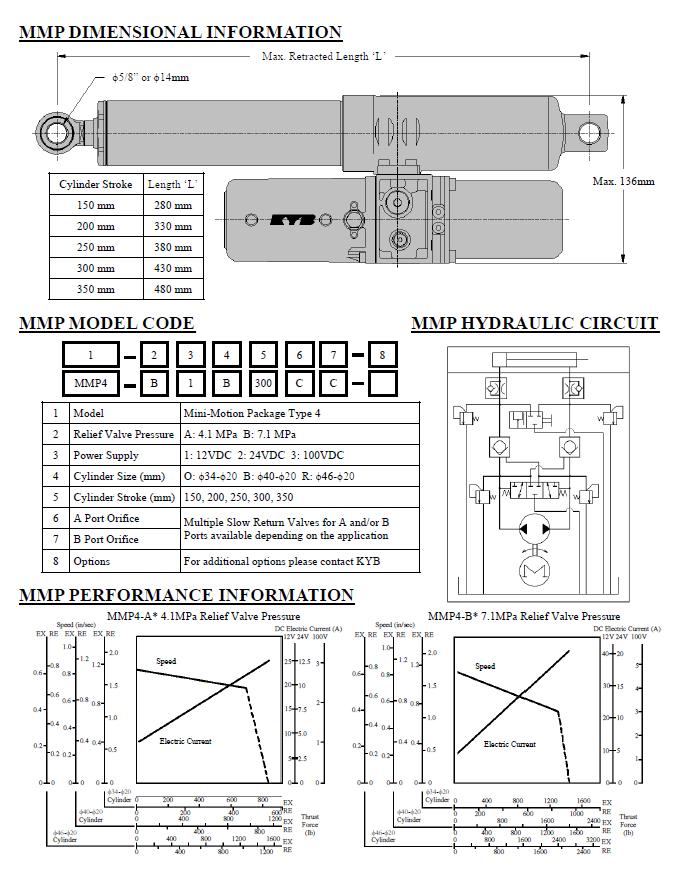

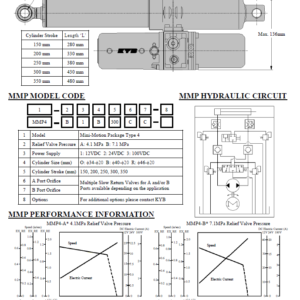

Specifications:

• force (out) 1800 lbs / 815 kg
• force (in) 1360 lbs / 615 kg
• speed (out) 13 mm/s
• speed (in) 18 mm/s
• power supply 12 V
• operating temperature -15 C…45 C
• cylinder mounting dimension 380 mm
• cylinder stroke length 250 mm
• piston rod thickness of cylinder 20 mm
• mounting loop diameter 5/8″ (15,9 mm)
• KYB product number MMP4 – B1B250BB – DHR
