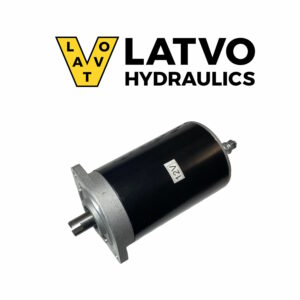

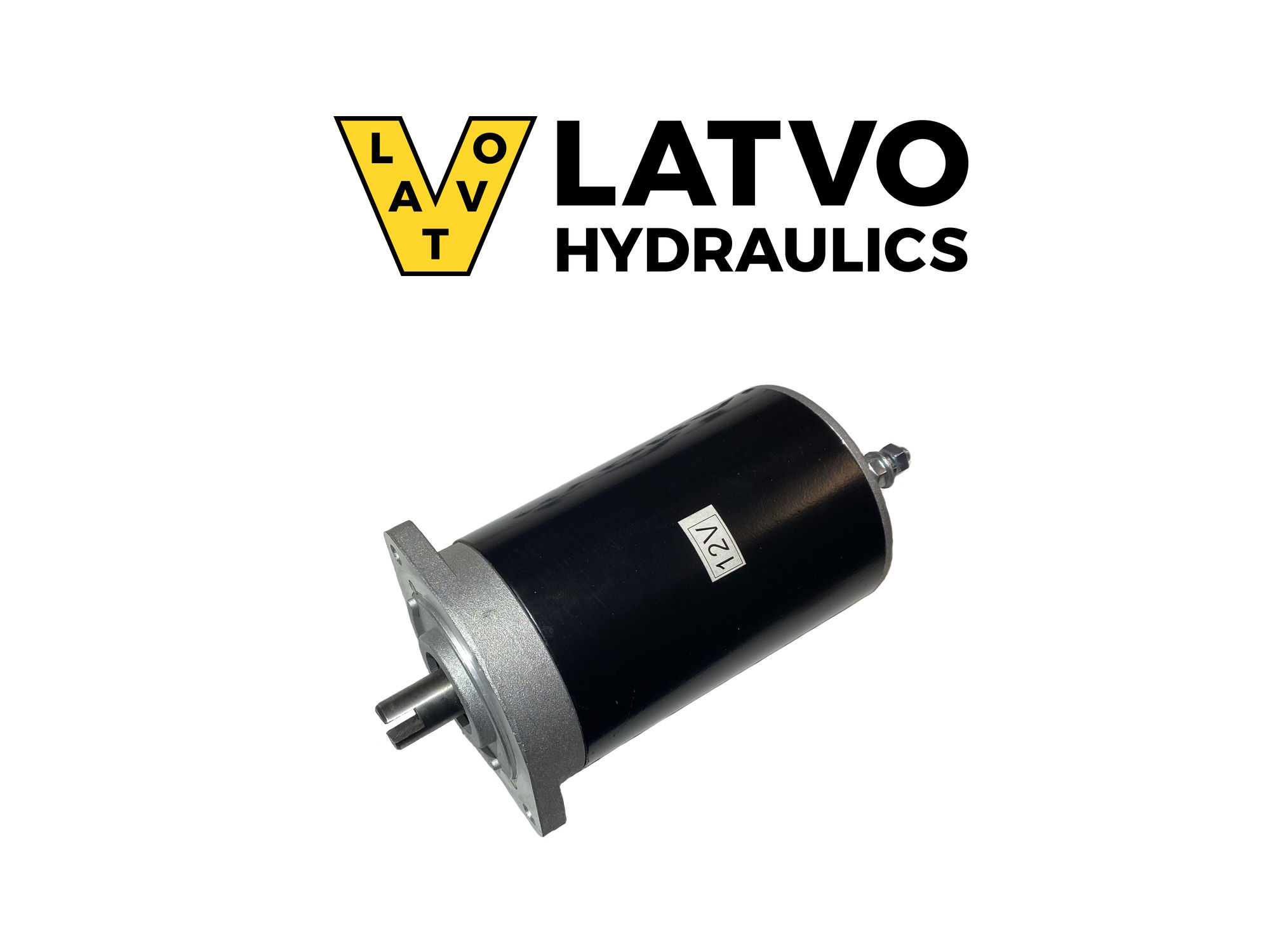

Electric motor, 800 W / 12 V

DC motor for hydraulic unit.

If the speed of the hydraulic cylinders has slowed down and the rotation of the hydraulic machine sounds difficult, it is time to service the electric motor of the unit. If the engine can’t be fixed with maintenance, here’s a quality new engine. Replacing the motor in the unit head is easy: disconnect the electrical cables from the motor end and remove the motor from the unit body (attached with two screws). When installing the motor in place, use the spacer provided (the old one may be too long for the new motor).

Power: 0,8 kW
Voltage: 12 V
Torque: 3 Nm
Speed: 4000 rpm
Rotation direction: clockwise and counterclockwise
Protection class: IP54

Dimensions:
Shaft diameter 15.5 mm
Shaft lenght (flange to surface) 27 mm
Groove width 6,5 mm
Groove depth 10 mm
Motor diameter 80 mm
Motor length (from flange to surface) 134 mm
