Digger ATV rotary, Bronco 360

Now also available in assembled form, +700 €. Price includes assembly, hydraulic oils, engine oils and starter battery. Transport price to be agreed separately.

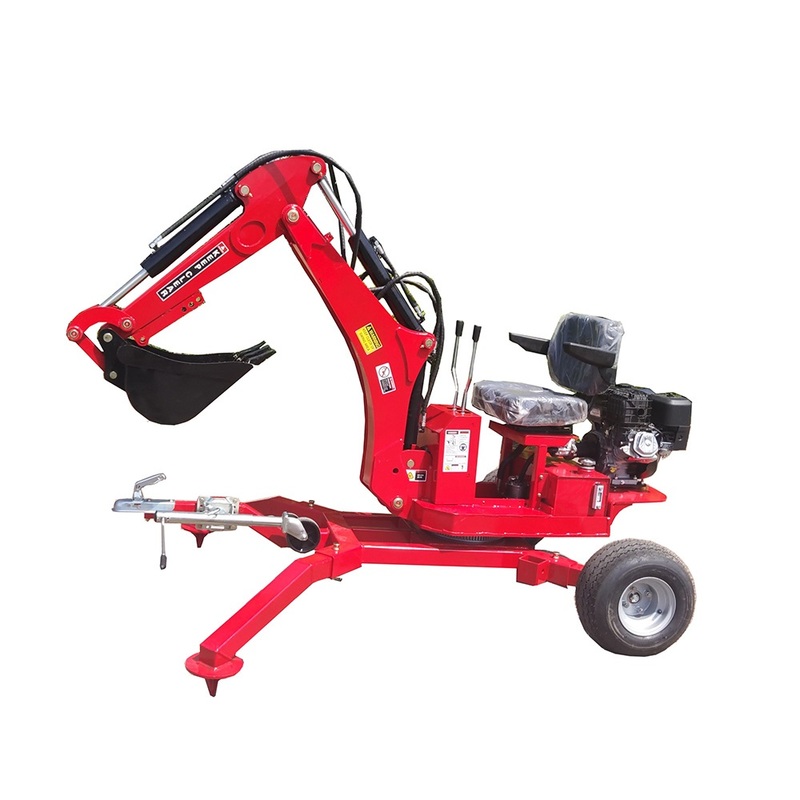

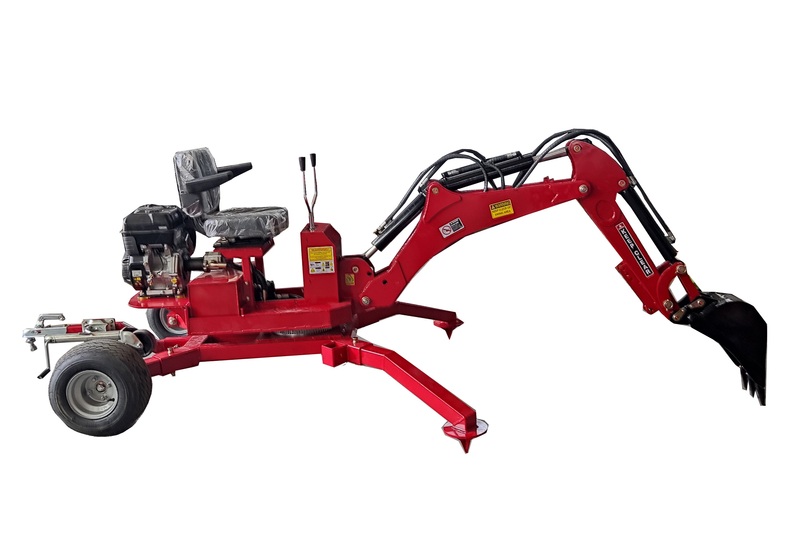

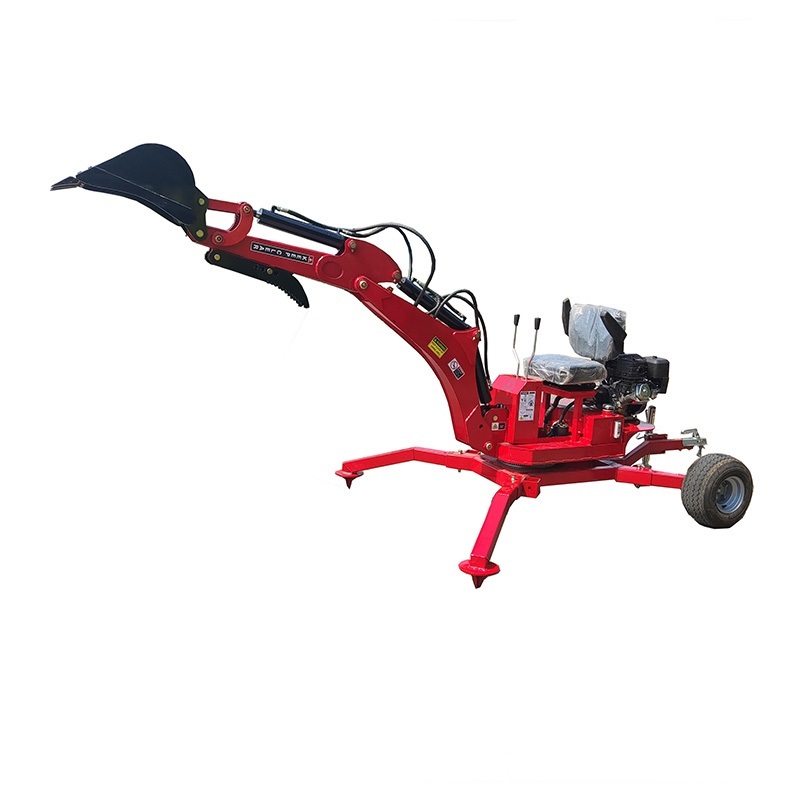

The new circular digger is considerably more agile than its old sister model, which only turned 140 degrees. Digging and loading is easier and faster with the digger’s full 360-degree working range. With two lever hydraulics, digging is easy and you can start using it within a couple of hours. The digger is equipped with a 50 mm tow bar, making it easy to move, e.g. with an ATV. The wheels are attached to the rear for the transfer and the support legs are attached to the front for the digging work.

The Bronco 360 has an upgraded valve table for more precise cylinder movements.

When digging in soft ground or occasional smaller stones, the digger can be attached to the tow ball of the vehicle (with the wheels on the back of the bucket), making it easy to move from one site to another. And after digging up a stone, for example, it is quick to move the stone to the edge of the plot by towing the digger and holding the stone in the bucket. However, beware of the less stationary nature of the digger and be careful not to break the tyres with the bucket.

Bronco’s Digger 360, powered by a powerful 13.5 hp Briggs & Stratton engine, is a handy tool for a wide range of digging jobs where space is limited and a larger digger is too heavy, for example because of the risk of ruining the grass. The Bronco digger can get into worse places/steeper slopes than mini diggers.

Despite its compact design and size, it can handle a lot more and bigger jobs than you might think at first glance. The Digger 360 digger comes standard with a 30 cm wide bucket with removable claws. Other buckets are also available as optional accessorys.

Engine: 4-stroke, B&S 13,5 hp
Fuel: petrol
Starting: traction and electric start (from May 2024)
Battery: Yuasa YTX20L(WC), product code 14-208-WC (not included)
Rotation range: 360 degrees
Digging depth: approx. 210 cm
Weight: approx. 580 kg
Outreach: approx. 245 cm
Height at the top: approx. 150 cm
Load capacity without counterweight: 186 kg
Load capacity with counterweight: 332 kg
Standard equipment: 30 cm bucket
Cylinders: 3 double-acting hydraulic cylinders
Turntable with hydraulic motor
Engine oil quantity: approx. 2 litres, SG15W/40 (in cold weather, softer oils are recommended)
Spark plug: B&S 798615, NGK BPR6ES, Champion RC12YC, Torch F6TC.
Hydraulic oil: HM32 (or HM46), approx. 30 litres
Factory warranty: 12 months

Colour code RAL-3002

The digger is delivered in a factory packed box (metal cage P221 x L84 x H83 cm) and requires assembly to set up. Hydraulic and motor oils are not included. Delivered on a trailer with trailer lift. Note: Painted surfaces may show minor scratches due to tight packing.

NOTE: When installing digger, check/tighten nuts/banjo bolts on all hydraulic hoses as some may be loose. The outermost/uppermost hoses must be removed from the valve manifold so that the lowest ones can be tightened.

NOTE: Position the cylinder hoses so that the first cylinder moves from the right hand control lever. If the first cylinder is moving from the left-hand control lever, the movement of that cylinder is very fast/bouncy.

NOTE: Remember to grease the pins often enough. If you dig all day then the pins are definitely in need of greasing.
