Digger ATV, Bronco

digger for ATV.

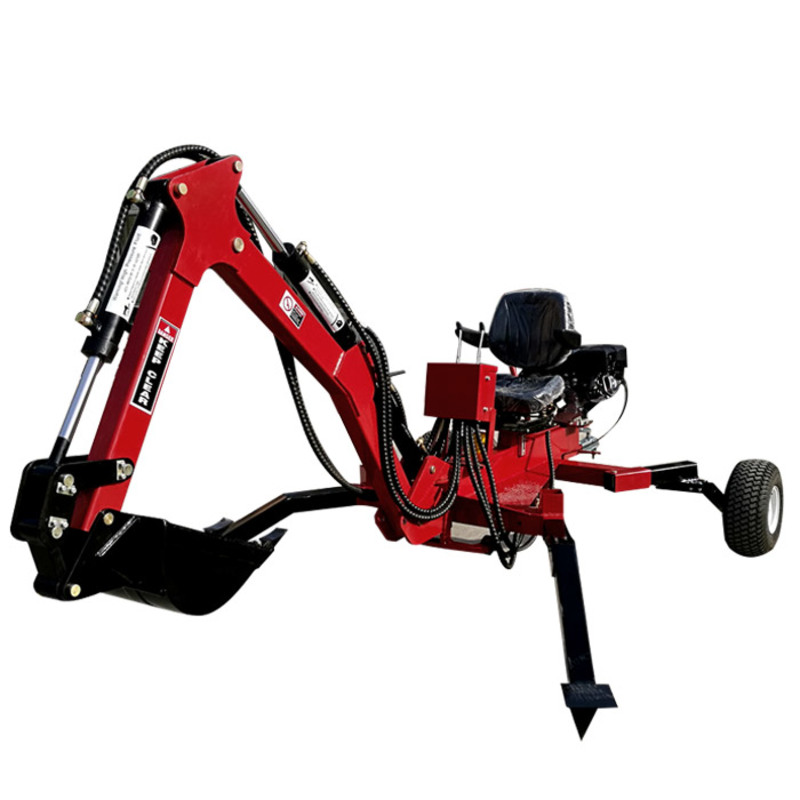

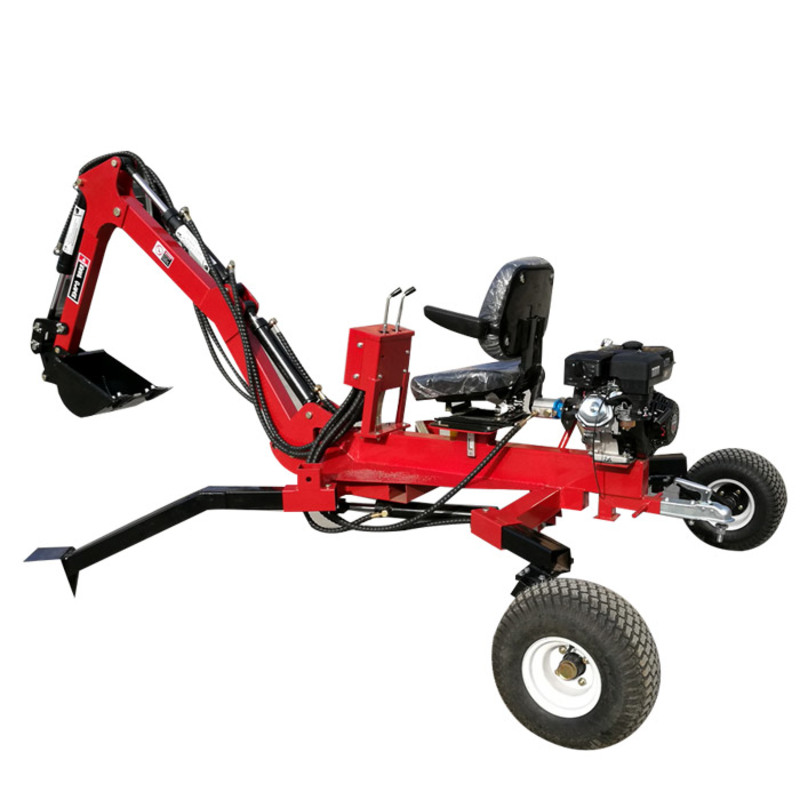

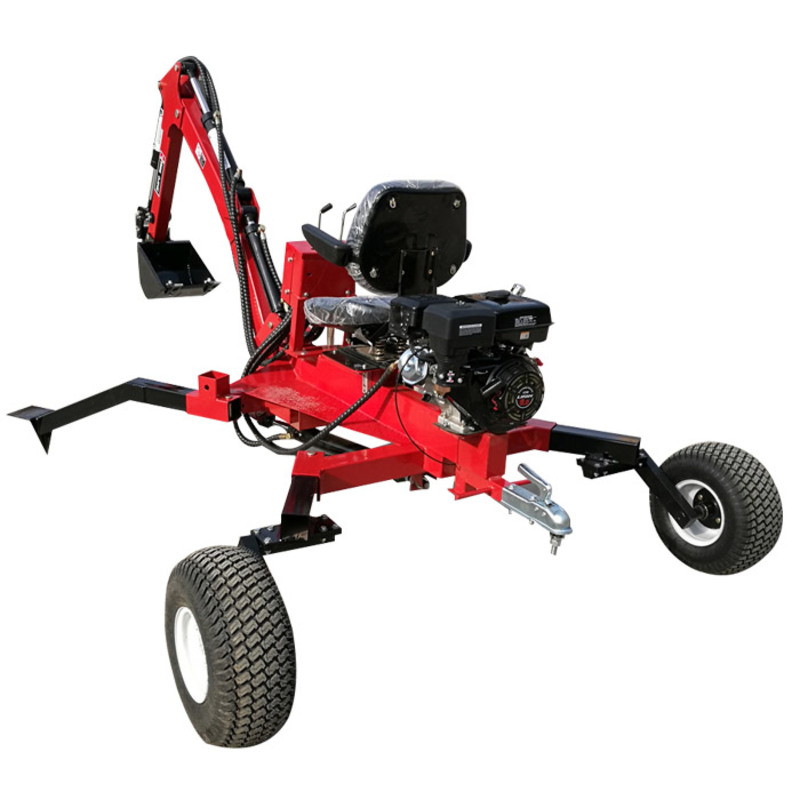

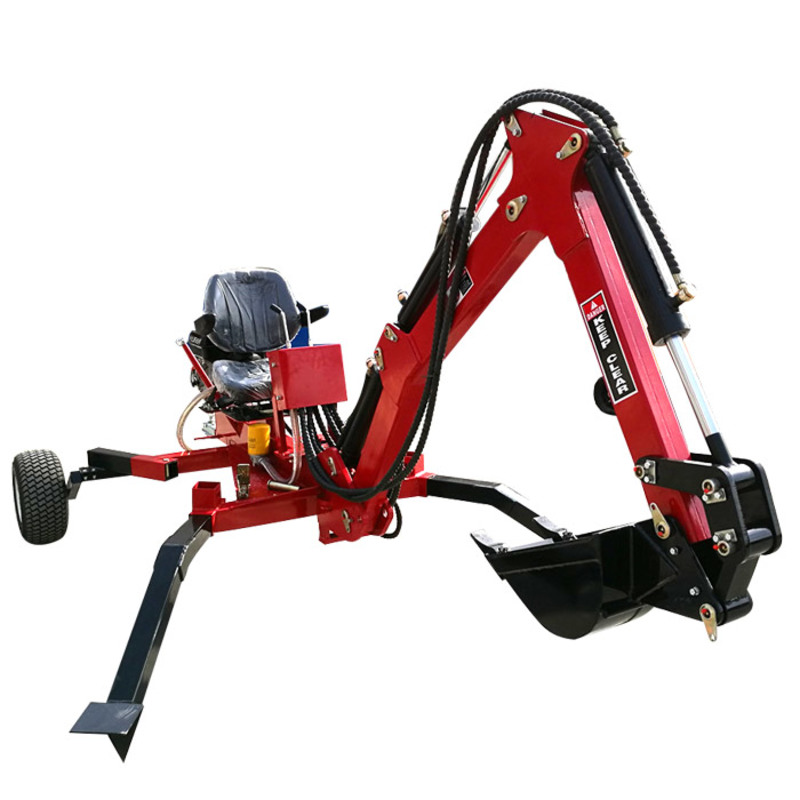

Powered by a powerful 13.5 hp Briggs & Stratton engine, the Bronco Digger 2020 is a handy tool for a wide range of digging jobs where space is limited and a larger digger is too heavy, for example because the grass is ruined.

Despite its compact design and size, it can handle much more and bigger jobs than you might think at first glance. The Digger 2020 comes standard with a 30 cm wide bucket and has a digging depth of around 200 cm. Other buckets are available as optional accessorys. With two lever hydraulics, digging is easy. The digger is equipped with a 50 mm tow bar, making it easy to move, e.g. with an ATV. The wheels are attached to the rear for transport and the support legs are attached to the front for excavation work.

Engine: 4-stroke, B&S 13,5 hp
Fuel: petrol
Starting: traction starting
Turning range: approx. 140 degrees
Digging depth: about 200 cm
Weight: about 550 kg
Outreach: about 245 cm
Height: approx. 140 cm
Load capacity without counterweight: 186kg
Load capacity with counterweight: 332kg
Standard equipment: 30 cm bucket
Cylinders: 4 double-acting hydraulic cylinders
Engine oil capacity: approx. 2L, SG15W/40
Spark plug: B&S 798615, NGK BPR6ES, Champion RC12YC, Torch F6TC
Hydraulic oil: HM32 or HM46, 20L
Factory warranty: 12 months

The digger is shipped from the factory in a box and requires assembly to set up. Hydraulic oils are not included.
